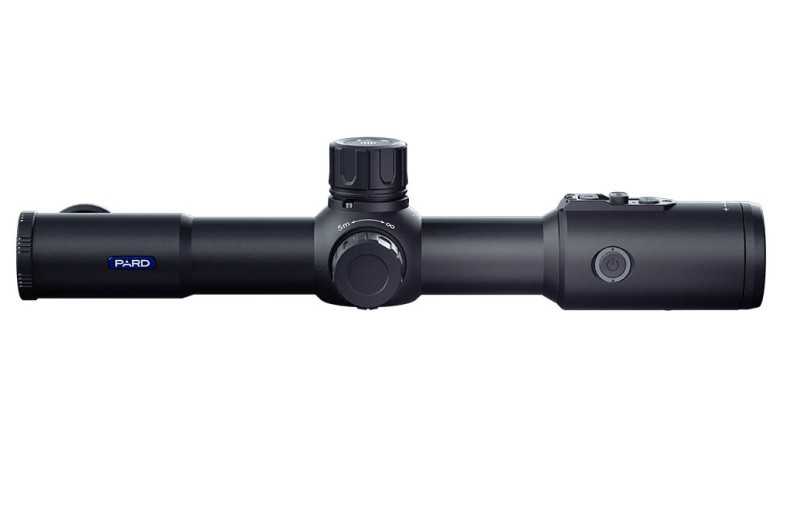

PARD PANTERA MINI 256Q THERMAL SCOPE

Product Features

• Ultra compact and lightweight
• Useable range of up to 200m
• 3.6x Optical mag with up to 8 x zoom
• Ideal for air rifles and rimfire
• 256x192 sub 25mK NETD thermal
• 30mm tube design


  Pard Pantera Mini 256Q –

  Specification Sheet

  General

  • Model: Pantera 256 Q
  • Classification: Thermal Imaging Scope
  • Sensor Type: Uncooled VOx (Vanadium Oxide)

  ---

  Sensor

  • Resolution: 256 × 192 pixels
  • Pixel Size: 12 µm × 12 µm
  • NETD: ≤25mK (0.025°C)
  • Frame Rate: 50 Hz
  • Detection Distance: Up to 1200 meters

  ---

  Optics

  • Objective Lens (Focal Length): 25 mm
  • Optical Magnification: 3.6×
  • Digital Zoom: 2× / 4× / 6× / 8×

  Field of View (in degrees)

  • Horizontal: 7°
  • Vertical: 5.3°
  • Diagonal: 8.8°

  Field of View at 100 m

  • Horizontal: 12.3 m
  • Vertical: 9.2 m
  • Focus Range: 5 m – ∞
  • Eye Relief: 50 mm
  • Diopter Adjustment: -5 to +5 D

  ---

  Display

  • Type: OLED
  • Resolution: 1024 × 768 pixels
  • Reticle Styles: 5 options
  • Reticle Colors: Red / White / Yellow / Green
  • Scene Modes: City / Rain / Forest
  • Image Modes: WT-HOT, BK-HOT, RD-HOT, IN-HOT, SKY

  ---

  Photo / Video

  • Photo Resolution: 1024 × 768 pixels
  • Photo Format: JPG
  • Video Resolution: 1024 × 768 pixels
