Conotech Range TI 50 LRF THERMAL SPOTTER
£1,853.00 (ex. VAT: £1,544.17)
CLICK LINK BELOW TO GET THE CONOTECH THERMAL APP

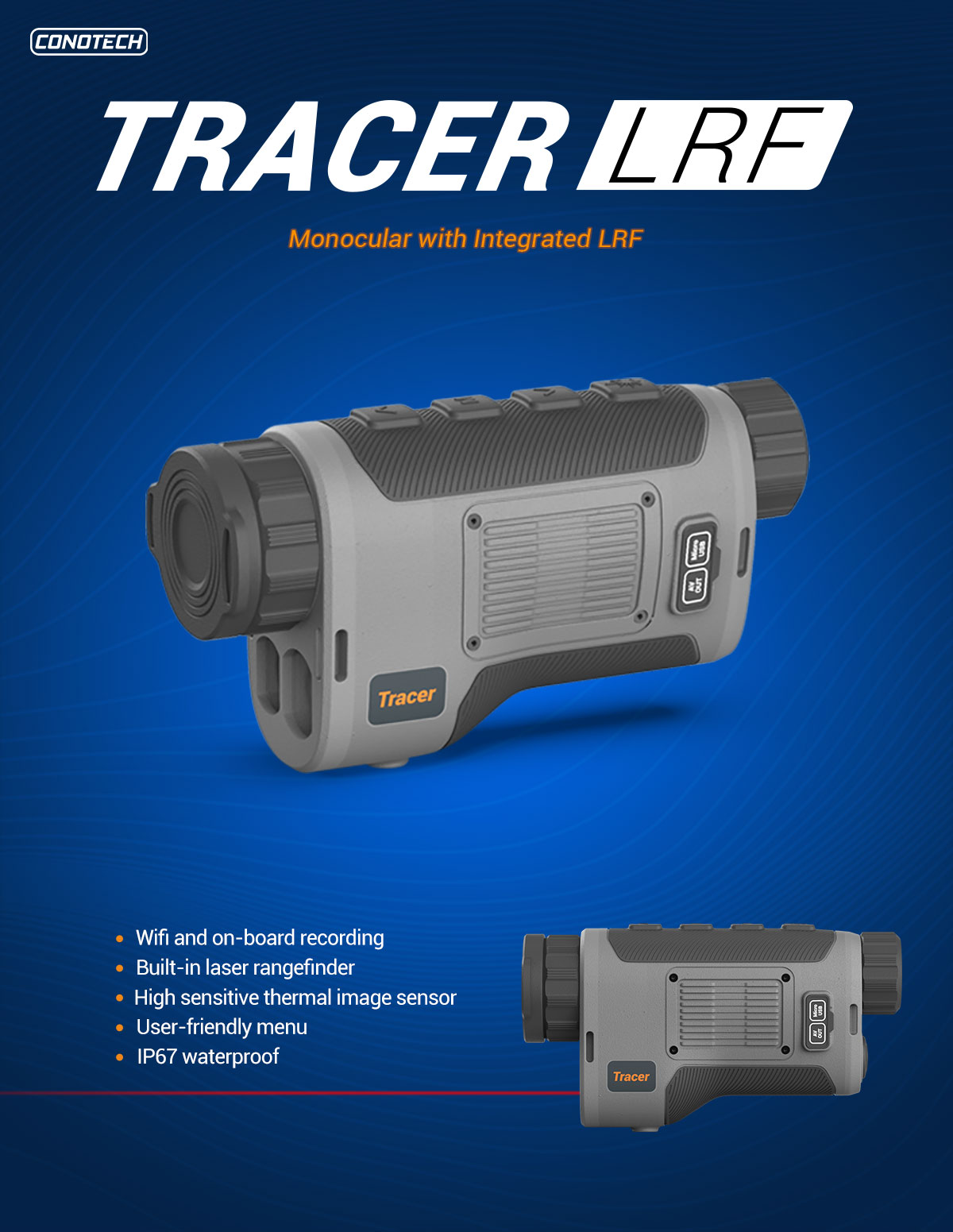

Tracer LRF thermal imagers are equipped with a built-in laser rangefinder with a range of up to 1000 m and measurement accuracy of ± 1 m. High sensitive thermal image Vox sensor with NETD 35mK allows you to detect targets by cutting through snow, dust, smoke, fog, haze, and other atmospheric obscurants.They can be used in various applications including hunting, observation, security, terrain orientation, search and rescue operations
1 in stock

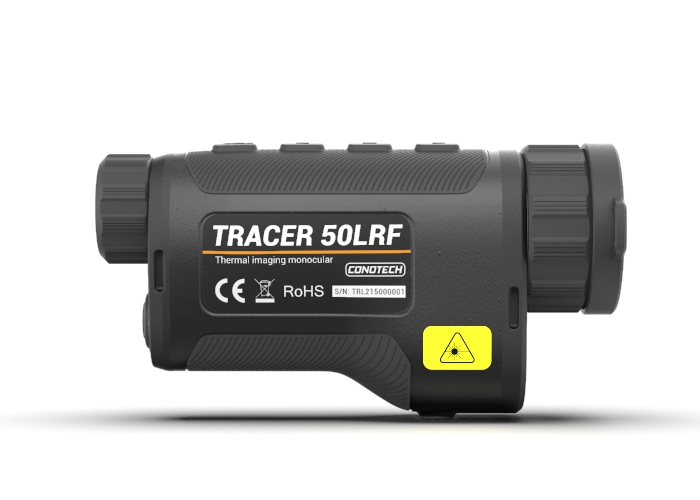

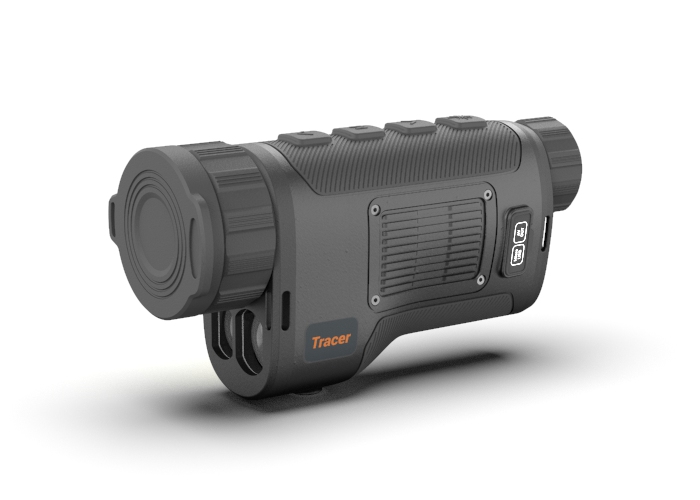

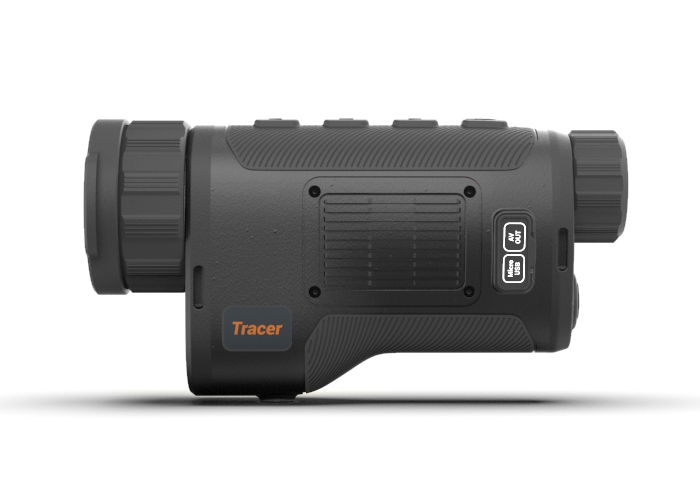

CONOTECH TRACER 50LRF THERMAL SPOTTER
Product Description
The Range TI 50 LRF offers excellent thermal imaging with its 384x288 17µm <35mK NETD thermal sensor and smooth, high resolution viewing with its frost-resistant 1024x768 HD AMOELD display and 50Hz frame rate.
The Range TI 50 LRF can even perform in conditions where temperature differences are minimal, such as during rain/snowfall, cold mornings, fog, etc.
Offers great optical capabilities with its 50mm objective lens, 15.56x max. magnification, and is capable of detecting distances of up to 2500m. Fitted with a built-in (eyesafe) laser rangefinder capable of accurately measuring distances up to 1000m (±1m).
Features photo & video capture with its on-board recorder, with all data being saved directly to the units 32Gb internal memory and can be transmitted wirelessly with the dedicated App.
CONOTECH TRACER 50LRF THERMAL SPOTTER
Features:
- Sensitive thermal sensor
- Built-In laser rangefinder
- Smooth digital zoom
- HD display
- Smooth viewing (50Hz frame rate)
- Built-In battery pack
- Long operation time

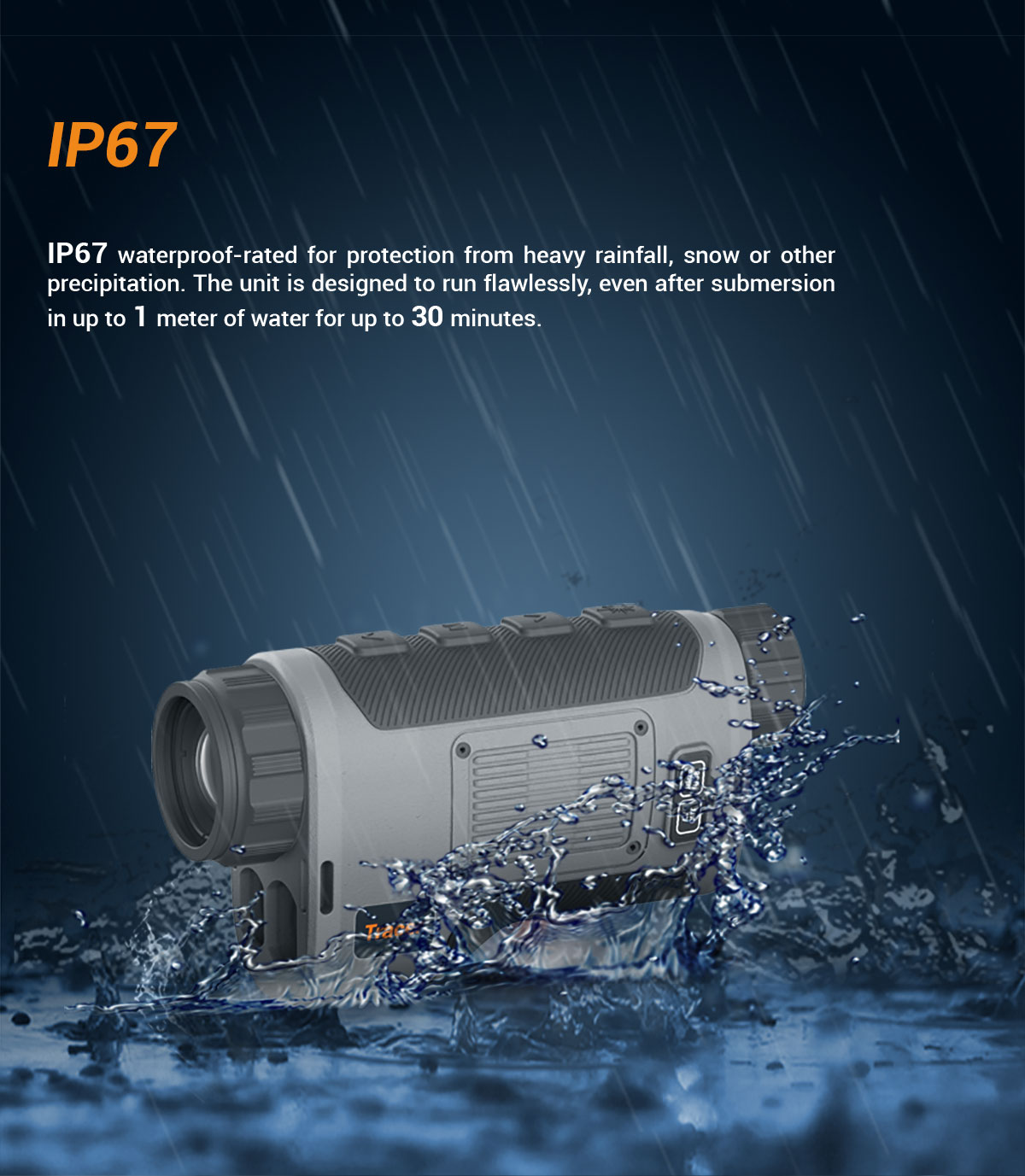

- High protection rating (IP67)
- On-Board photo & video recorder
- Video output (USB)
- 32Gb Internal memory
- Built-In WiFi module
- Functional App
- Picture-in-Picture (PiP) mode
- Power saving "Standby" Mode

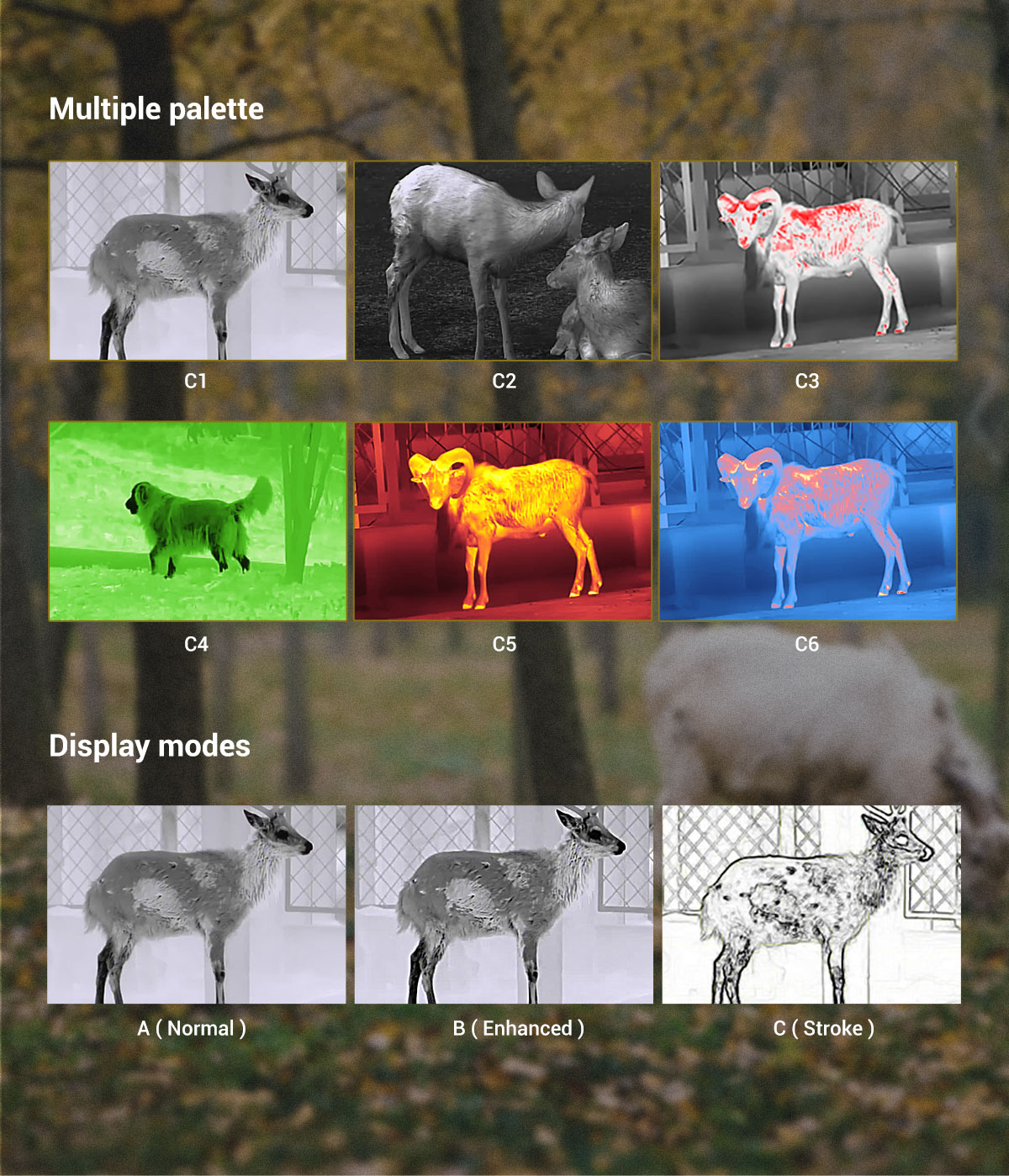

- Multiple colour, display & observation modes
- Fast start-up
- Image Enhancement Mode (DDE)

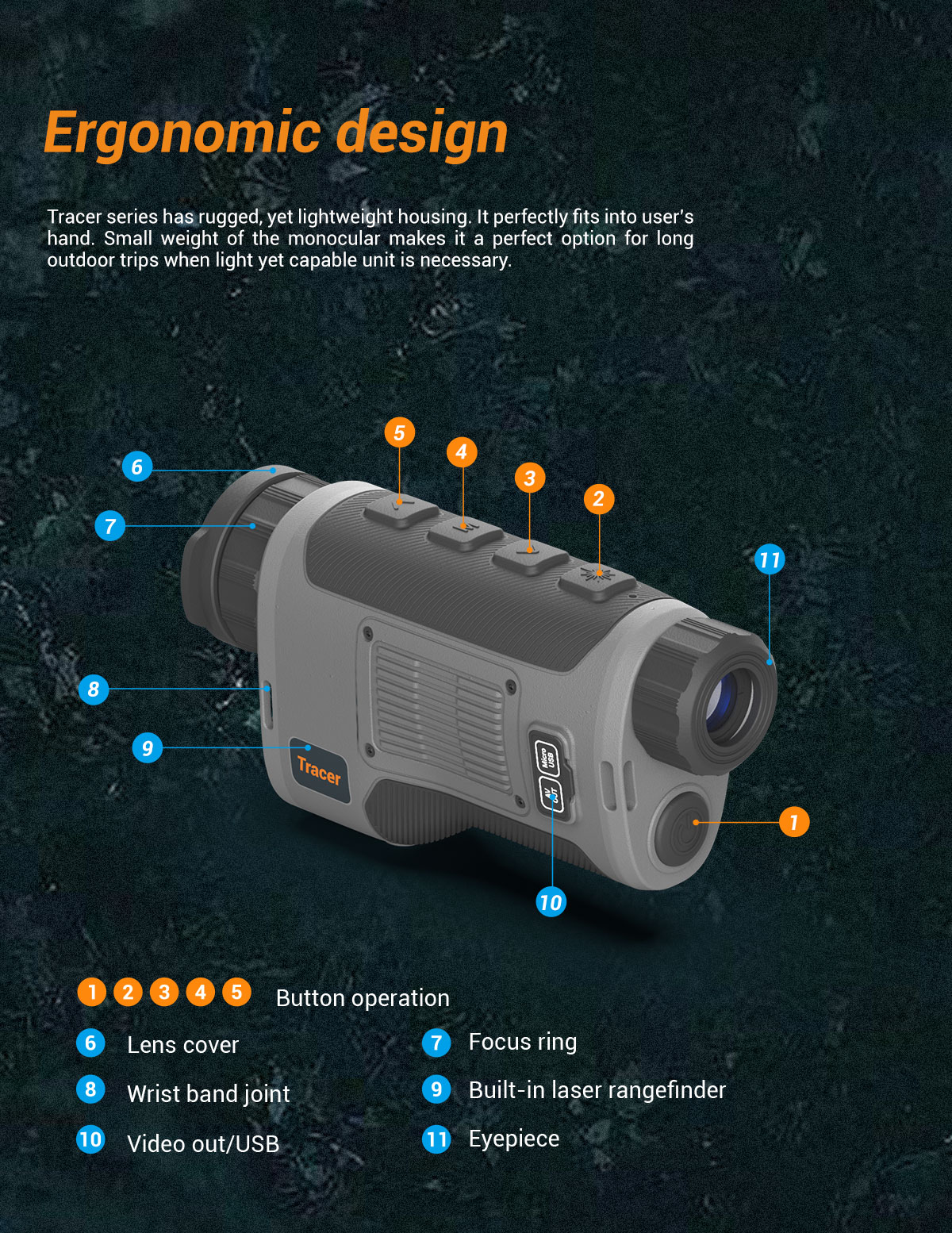

- Ergonomic design
- Centralised controls
- Focusable lenses
CONOTECH TRACER 50LRF THERMAL SPOTTER
Specs :
- Thermal Sensor: 384x288 17µm <35mK NETD
- Frame Rate: 50Hz
- Display: 1024x768 HD OLED
- Objective Lens: 50mm
- Field of View: 7.4°
- Magnification: 3.89x - 15.56x (4x smooth digital zoom)

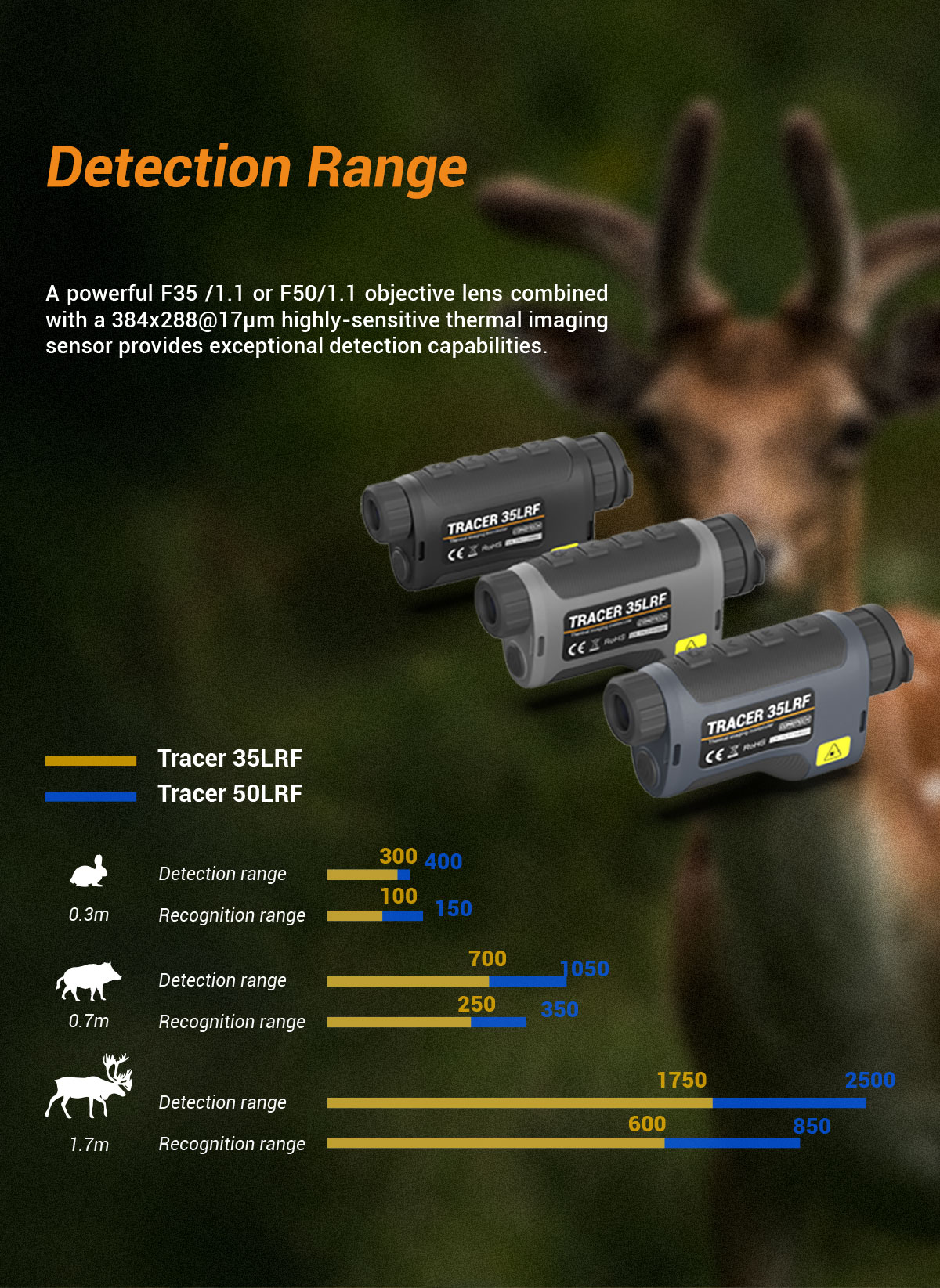

- Detection Range: 2500m (Based on 1.7m deer-sized objects)
- Battery: Built-In lithium battery
- Power: 5v micro USB
- Operation Time: 8hrs
- Rating: IP67 (waterproof)
- Operating Temperature: -20℃ to 50℃
- Rangefinder: 5-1000m (±1m) (eye-safe: Class 1 laser)
- LRF Modes: Single time measurement | Scanning | High-Humidity
- Weight: 590g
- Dimensions: 165x56x92mm
| Model | Product Code | Thermal Sensor | Frame Rate | Magnification (Digital Zoom) |
F.O.V | Detection Range |
View Finder | Rangefinding | Dimensions |
|---|---|---|---|---|---|---|---|---|---|
| Range TI 35 LRF | CON-RANGE-TI-35-LRF | 384x288 17µm <35mK NETD |
50Hz | 2.72x - 10.88x (4x) | 10.6° | 1750m | 1024x768 HD OLED |
Laser | 155x50x92mm |
| Range TI 50 LRF | CON-RANGE-TI-50-LRF | 384x288 17µm <35mK NETD |
50Hz | 3.89x - 15.56x (4x) | 7.4° | 2500m | 1024x768 HD OLED |
Laser | 165x56x92mm |
-
±1m
Amendment to Manual
Please be advised that since the Range TI Manual was printed the App name has changed from Cam802 to CONOTECH.
Please scan the QR code below to install the App
The default password is 12345678
