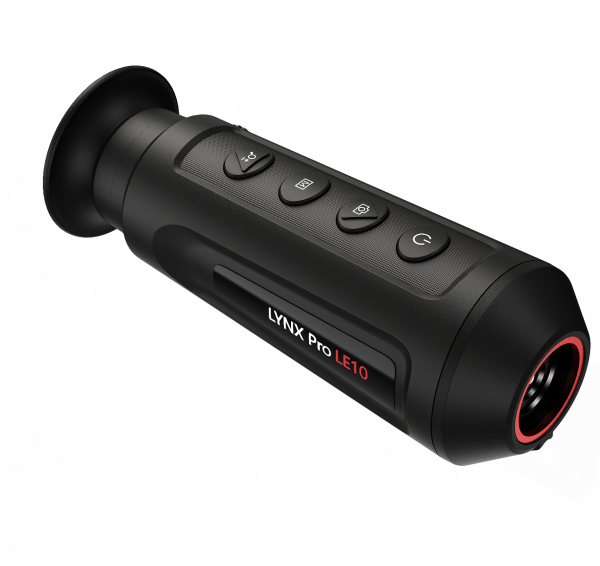

HIK Micro Lynx PRO 10mm 35mK 256×192 12um Smart Thermal Monocular

£569.00 (ex. VAT: £474.17)

HIK Micro Lynx PRO 10mm 35mK 256×192 12um Smart Thermal Monocular

DETAILS



Joining the range of HIK Micro thermal monoculars – the Lynx LE10 is focused on delivering high-level thermal performance at an entry-level price point.

1 in stock

HIK Vision Authorized Dealer

HIK Micro Lynx PRO 10mm 35mK 256x192 12um Smart Thermal Monocular

DETAILS

Joining the range of HIK Micro thermal monoculars – the Lynx LE10 is focused on delivering high-level thermal performance at an entry-level price point.

At the heart of this enhanced performance is the 256 x 192, 12um sensor, this delivers higher levels of image detail that will be especially useful when trying to locate and identify small animals like rabbits, squirrels and birds. The sub 35 NETD performance of the sensor ensures detection of small temperature changes and excellent performance in harsh conditions.

The Lynx 10mm offers the same software as the more expensive HIK models and includes 4 colour palettes, white-hot, black hot, red hot and fusion. The LE10 can also record video or images with the onboard memory or connect to the T-Vision app to seamlessly share or record your shooting experience.

The fixed-focus optical system and wide field of view make it easy to quickly scan large areas and identify them.

HIK Micro Lynx PRO 10mm 35mK 256x192 12um Smart Thermal Monocula

MORE INFORMATION

MORE INFORMATION

More Information
HIK Micro
HIK Micro Lynx PRO 10mm 35mK 256x192 12um Smart Thermal Monocular
HM-LE10
unit type Thermal
color pallettes Yes
detection range 450m
display resolution 720x540
display type LCOS
magnification digital 8x
magnification optical 1x
need<35mK
len diameter 10mm
operating temp -20/+55°C
pixel pitch 12μm
refresh rate 25HZ
sensor resolution 256x192
video sound recording Yes
wifi Yes

SPECS

Main

  • Sensor: 256x192px @ 12µm
  • Objective Lens (Focal Length): 10 mm
  • Detection Range (Human 1.8m x 0.5m): 458 m

Sensor

  • Type: VOx Uncooled Focal Plane Arrays
  • Resolution, pixels: 256 x 192 PX
  • Pixel pitch, um: 12µm
  • Frame rate, Hz: 25 Hz
  • NETD: <35mK

Optics

  • Objective lens: F1.0
  • Magnification (optical): 1x
  • Magnification (Digital): 1x, 2x, 4x, 8x
  • Field of view: 18.00° × 13.55° (H × V)°

Display

  • Type: 5.08mm, LCOS
  • Resolution, Pixels: 720 × 540
  • Colour Palettes: Black Hot, White Hot, Red Hot, Fusion

Video Recorder

  • Built-in memory, GB: 8

Additional features

  • Hot tracking: Yes
  • WIKI Hot spot: Yes
  • T-Vision App support: Yes

Environmental

  • Degree of protection, IP code: IP67
  • Dust protection: Protected against dust ingress
  • Water protection: Protected against temporary submersion in water
  • Operating temperature range: -20 °C to 55 °C

Weight & size

  • Dimensions, mm: 158 mm x 61 mm x 57 mm
  • Weight, Kg: 0.26 kg

Power Supply

  • Operating time on battery (WIFI & Hot tracking disabled): 8 Hours continuous running
  • Charging interface: USB-C
  • Battery capacity after 1000 cycles: 80%

Warranty

  • Main Unit: 3 Years
  • Battery: 2 Years
