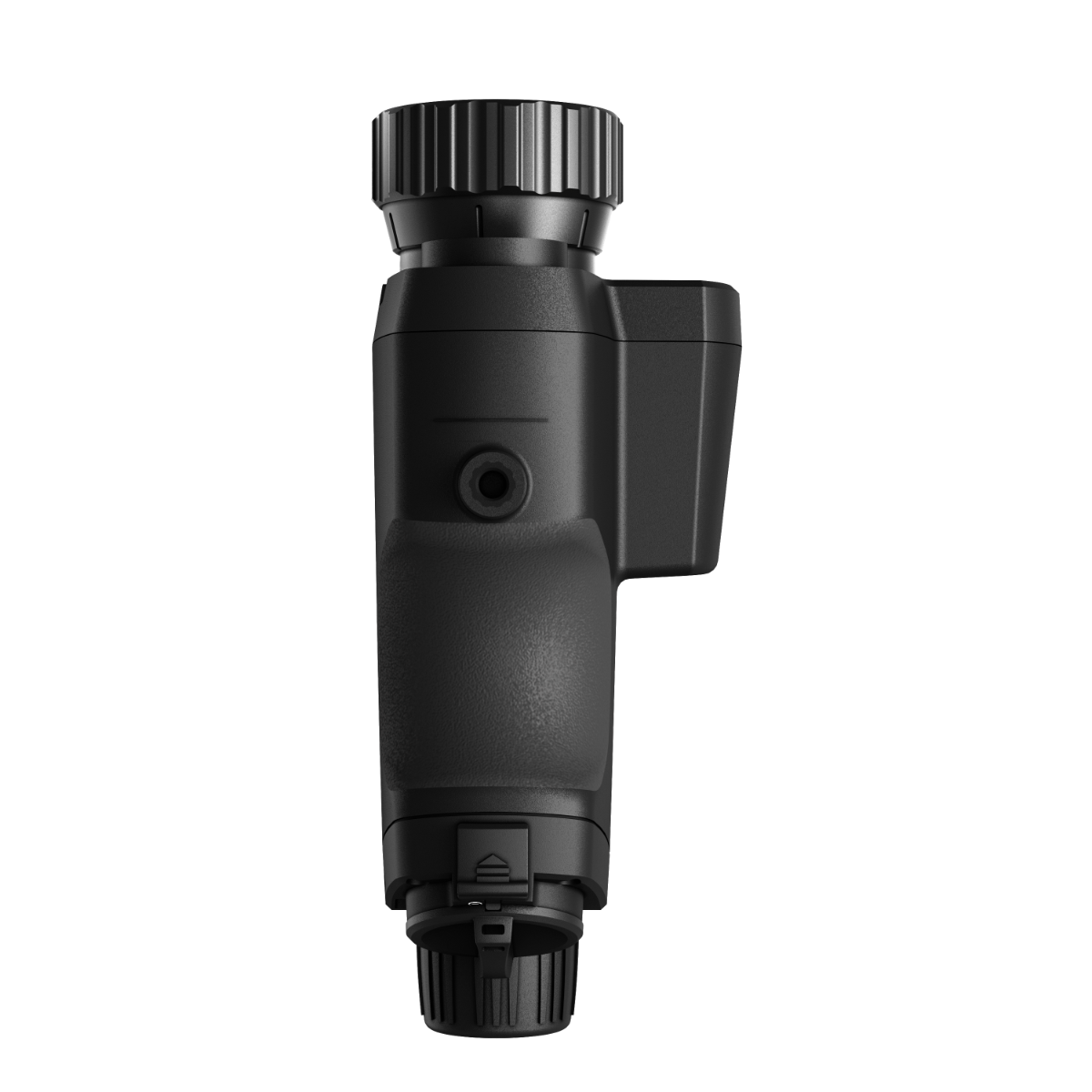

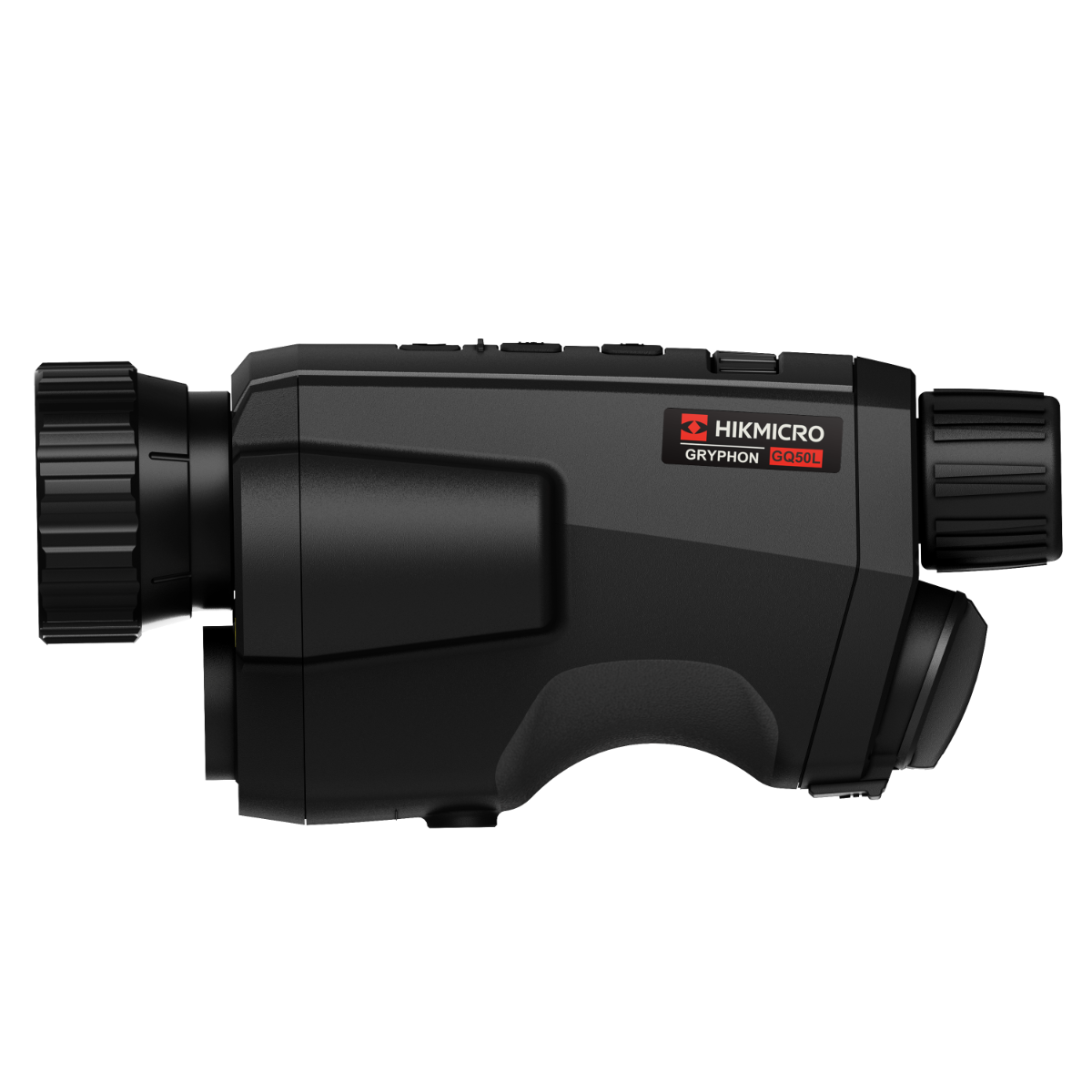

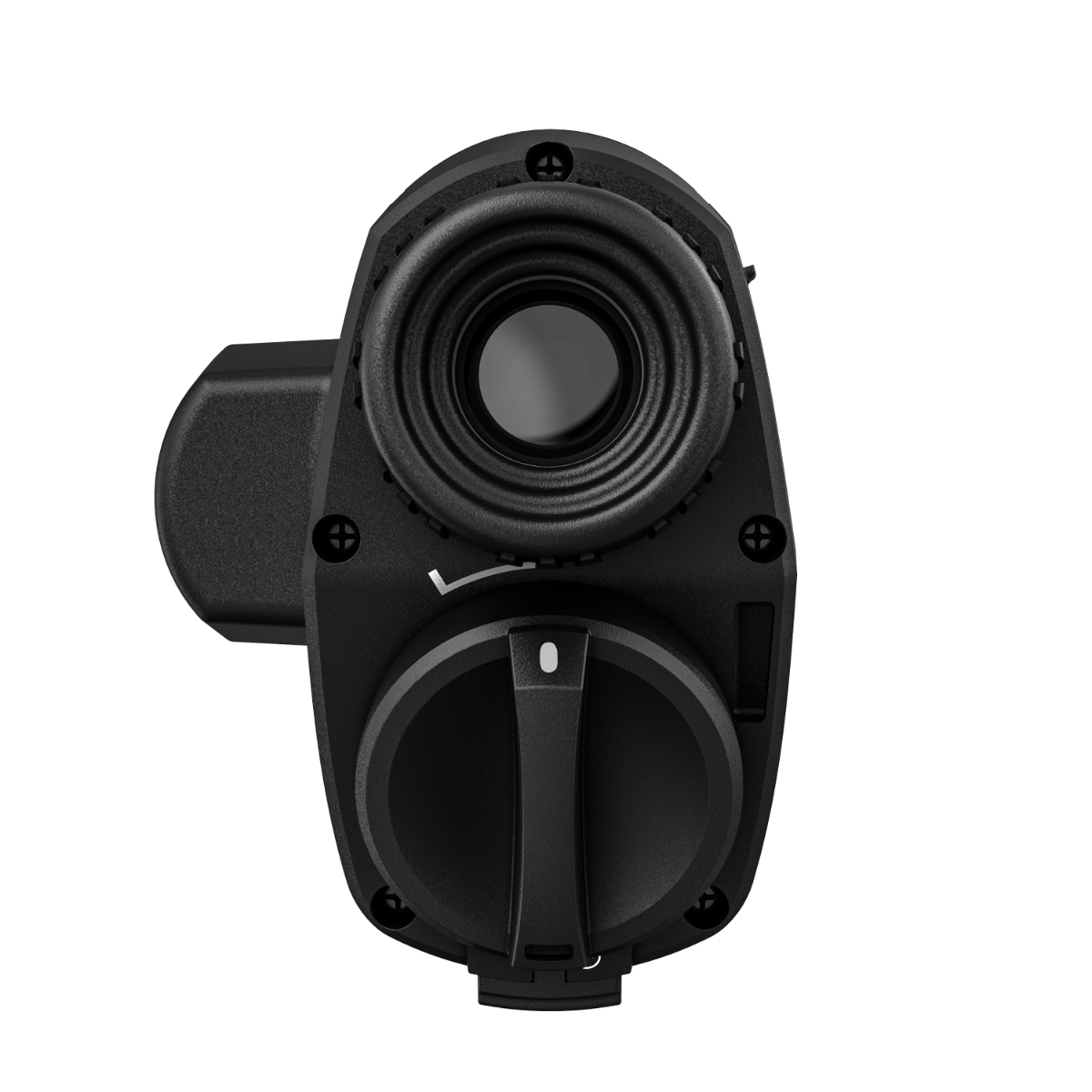

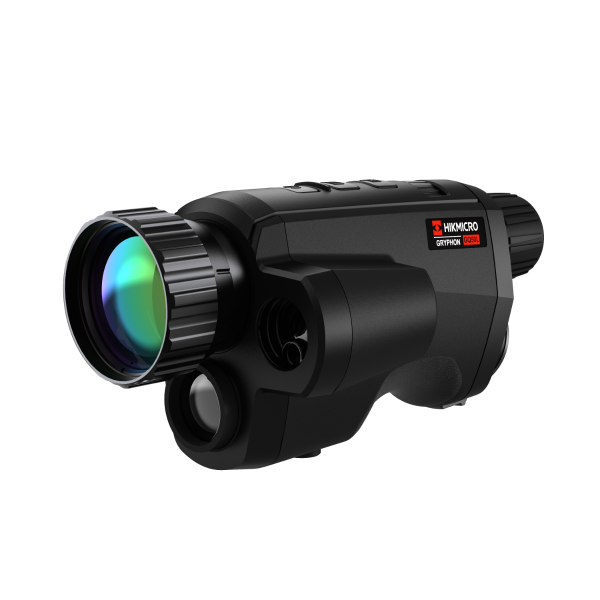

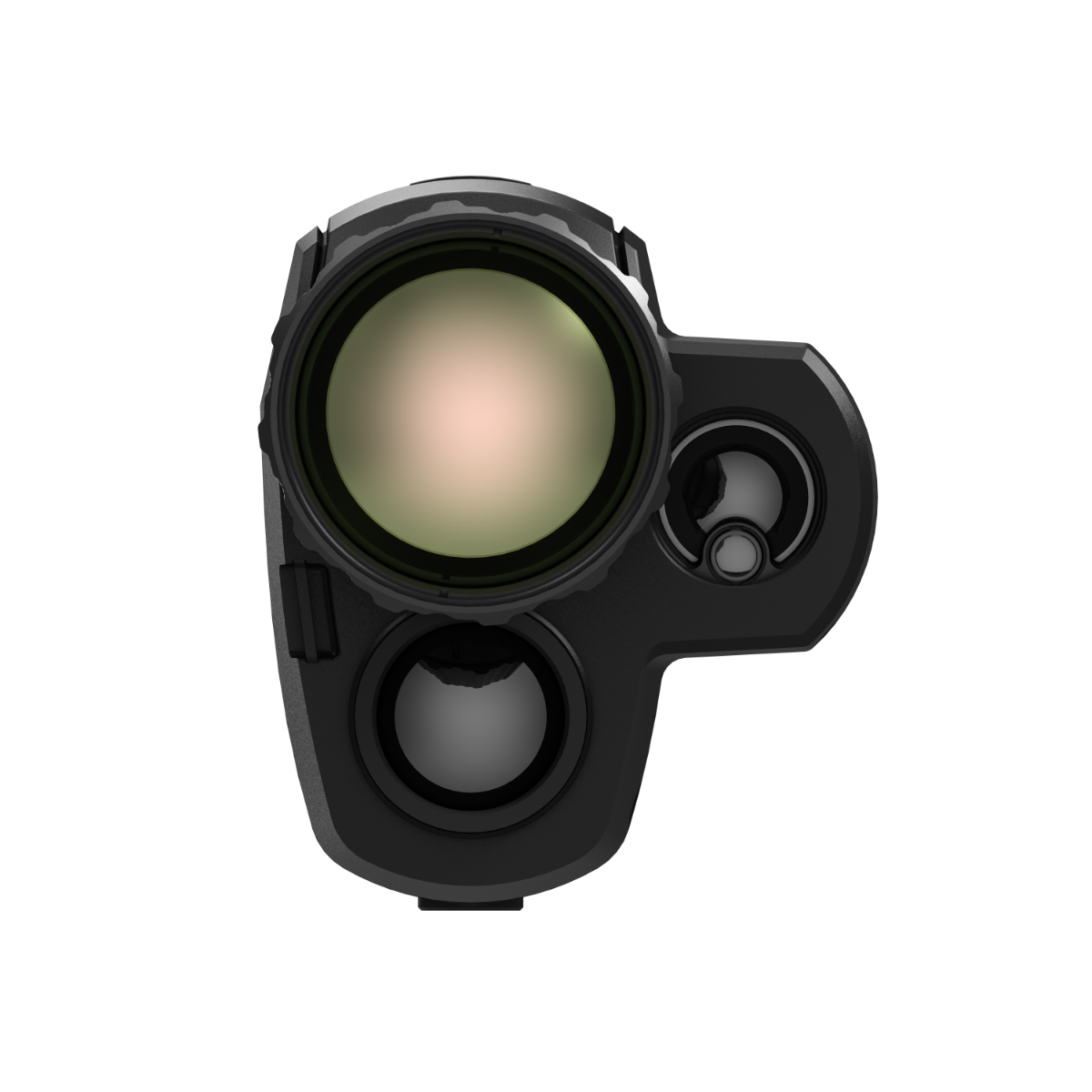

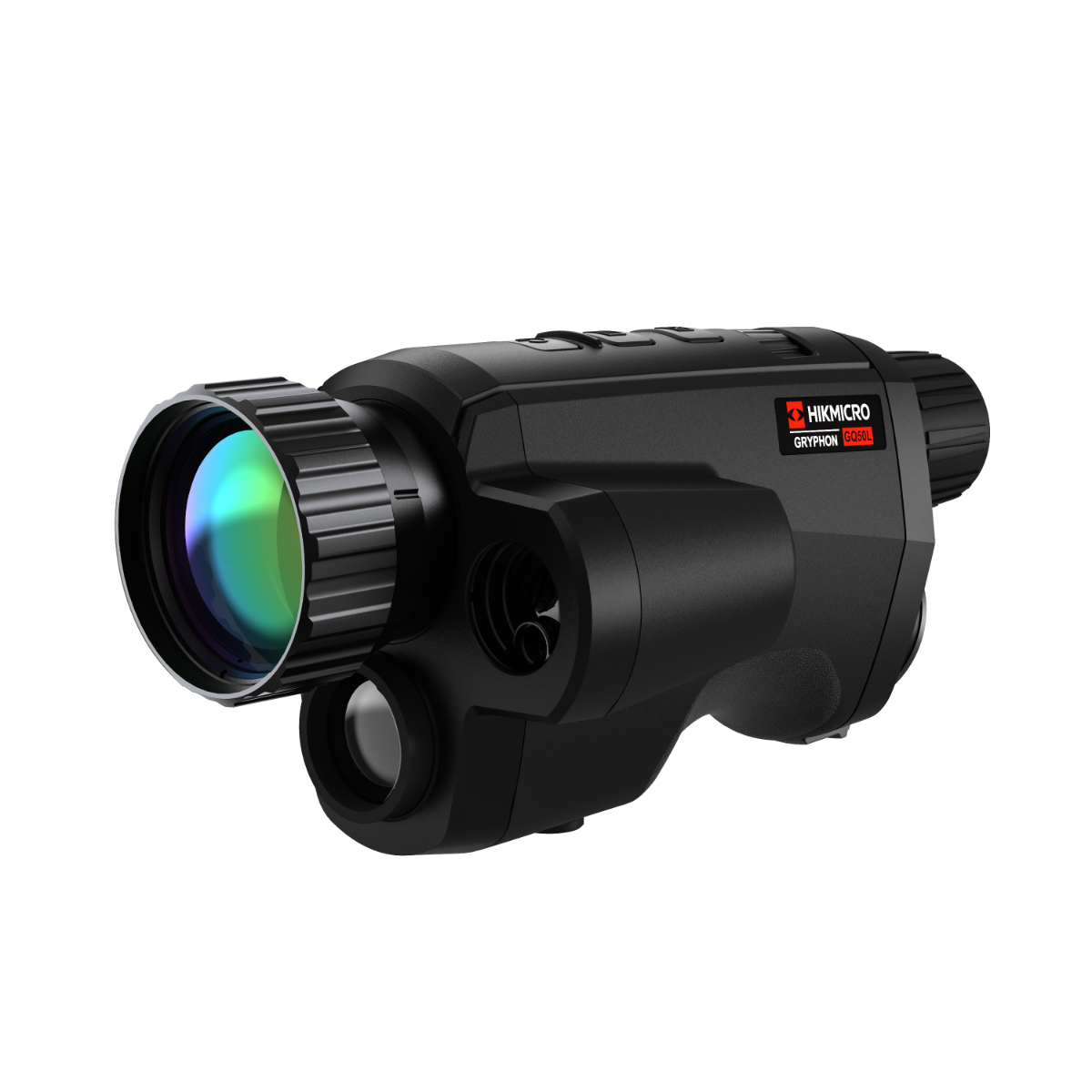

HIKMICRO Gryphon GQ50L 50mm Pro 640×512 12µm Thermal Monocular With LRF

£2,599.00 (ex. VAT: £2,165.83)

Introducing the latest addition to the Gryphon family, the high resolution, high magnification, 50mm Pro LRF.

This high specification pocket rocket delivers the detailed thermal image associated with HIKMICRO’s 640x512px, sub 35mk NETD sensor paired with a high quality 50mm lens system to deliver 2.9x magnification within the compact Gryphon chassis.

Out of stock

HIKMICRO Gryphon GQ50L 50mm Pro 640x512 12µm Thermal Monocular With LR

Introducing the latest addition to the Gryphon family, the high resolution, high magnification, 50mm Pro LRF.

This high specification pocket rocket delivers the detailed thermal image associated with HIKMICRO’s 640x512px, sub 35mk NETD sensor paired with a high quality 50mm lens system to deliver 2.9x magnification within the compact Gryphon chassis.

In addition to the high specification thermal channel – the Gryphon Pro 50mm is also fitted with an optical camera that can operate in low light and even complete darkness with the optional IR Torch attachment. This is effectively a Thermal and Night Vision Monocular in one.

The built-in 600m Laser Range Finder allows you to accurately judge the distance to the target in a choice of yards and metres, and there is the added option to choose between a single readings and scan mode.

The Gryphon chassis also introduces a range of new features. These include a jog wheel that allows you to scroll the magnification up and down as you would with a conventional optical scope, an optional Laser Range Finder and a removable 18650 battery. The large 1024x768 OLED display generates a bright and crisp view of your surroundings that’s easy on your eye.

At the centre of the Gryphon Pro is HIKMICRO’s 640x512px, 12µm thermal sensor with a sub-35mK NETD. This highly accurate thermal sensor is capable of detecting small temperature differences, building a highly detailed image, even in the harshest of conditions.

The thermal sensor is paired with HIKMICRO’s high performance 50mm focal length lens system which delivers 2.9x optical magnification, with up to 8x digital magnification, effectively making this a 2.9 – 23x monocular.

This is paired with a high-resolution optical camera that is capable of providing a detailed image both in daylight hours and in complete darkness using the optional IR torch. You can quickly switch between pure thermal view and the detailed optical mode to detect and accurately identify heat sources.

The Gryphon also includes the unique Fusion mode which adds the detail from the optical image to boost the performance of the thermal channel, delivering the ultimate in detection and detail.

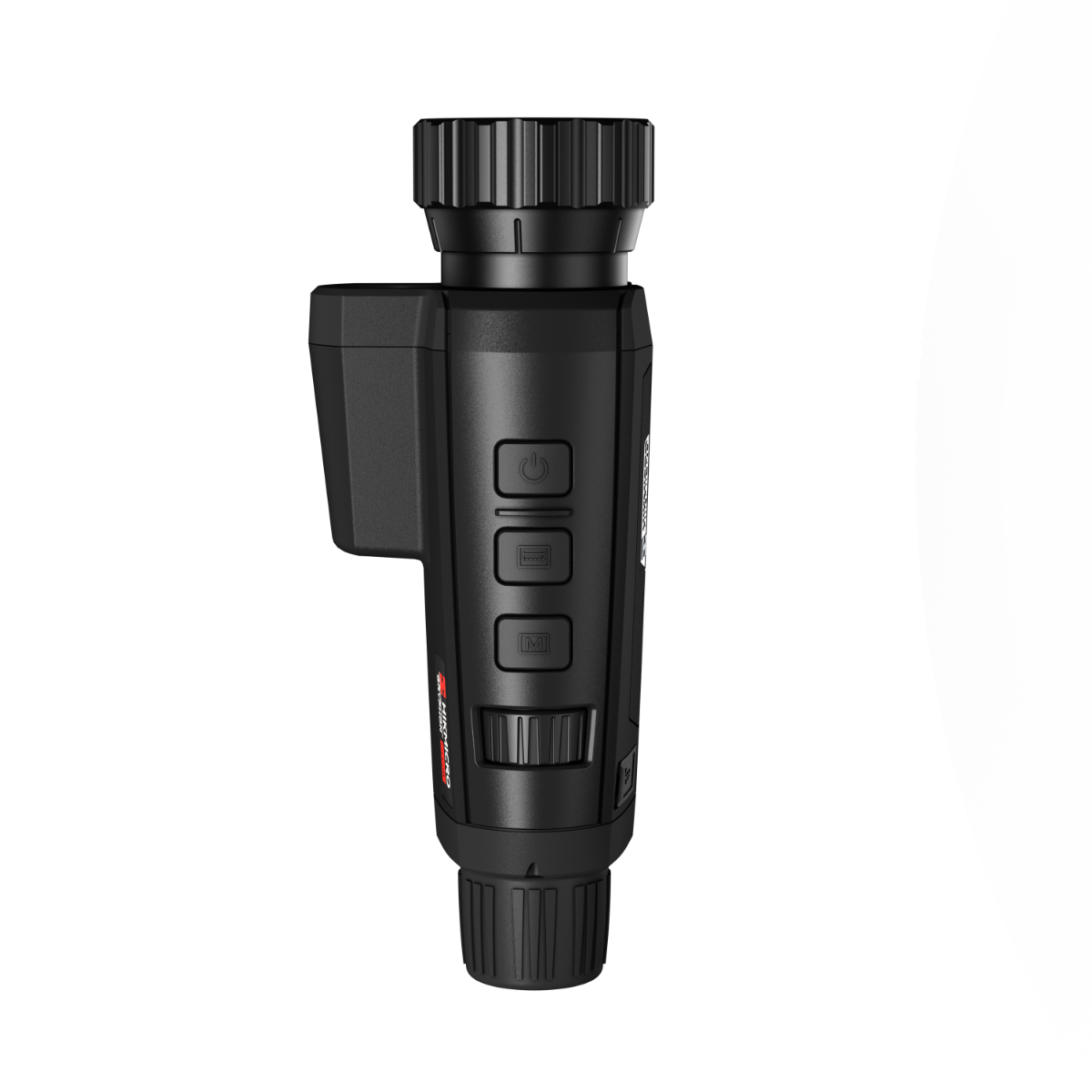

The Gryphon uses an all new chassis design which has been developed to be easily held and operated in one hand. There are three buttons on the top of the unit make it easy to operate the Laser Range Finder and switch between image modes. HIKMICRO have also included a revolutionary jog wheel that falls comfortably to the tip of your index finger and can be used to scroll up and down the magnification like a conventional optical scope. This jog wheel is also used to quickly navigate the menu system.

The 600m Laser Range Finder is located on the left hand side of the unit in a compact housing and offers distance readings accurate to ±1m. When activated there is a small crosshair added to the display that can be used to target the Range Finder. Choose between spot mode for a single reading and scan mode for a constantly updating range reading.

The Gryphon is also the first Monocular in the HIKMICRO range to be powered by the industry standard 18650 removable battery. This makes extended hunting trips possible without any power concerns. Replacement batteries are readily available and economical to buy. There is also a high specification charger included with your Gryphon, this provides detail on the charging status and health of your batteries ensuring that you aren’t caught in the field with no power.

There are lots of other small improvements that have been included, like the power button that includes a status light so you can see at a glance if the unit is powered on or in standby mode.

As with all other HIKMICRO thermal products you can access the HIKMICRO Sight App to stream, record and control your Gryphon. You can also record images and videos from your trips to the 16GB internal memory. The latest version of the T-Vision app offers extended features like access to the LRF, transferring images stored on the device into your phone and also the ability to install the latest firmware.

All thermal sensors used in HIKMICRO products are designed, developed and manufactured by HIKMICRO. This guarantees you unrivalled performance and value for money. You are also covered by the 3 year HIKMICRO UK warranty. Should you encounter a problem with your product, HIKMICRO has UK based technicians who can resolve any issues quickly.

HIKMICRO Gryphon GQ50L 50mm Pro 640x512 12µm Thermal Monocular With LR

More Information

More Information
Brand HIKMICRO
Popularity HIKMICRO Gryphon GQ50L 50mm Pro 640x512 12µm Thermal Monocular With LRF
SKU HM-GQ50L
Unit Type Thermal
Colour Palettes Yes
Detection Range 2600m
Display Resolution 1024x768
Display Type OLED
FOV @ 100 yards 8.7°
Magnification (Digital) 8x
Magnification (Optical) 2.85x
Objective Lens Diameter 50mm
Operating Temperature -20/+55°C
Pixel Pitch 12μm
Rangefinder LRF
Refresh Rate 50HZ
Video Recording Yes
WiFi Yes

Specs

Main:

  • Sensor: 640x512 @ 12µm
  • Objective Lens (Focal Length): 50mm
  • Detection Range (Human 1.8 x 0.5m): 2600m

Sensor:

  • Type: VOx Uncooled Focal Plane Arrays
  • Resolution, pixels: 640 x 512
  • Pixel pitch, µm: 12µm
  • Frame rate, Hz: 50 Hz
  • NETD: <35mK

Thermal Optics:

  • Objective Lens: F1.2
  • Magnification (optical): 2.9x
  • Magnification (Digital): 1x, 2x, 4x, 8x
  • Field of view: 8.78°× 7.03°(H × V)

Fusion Camera:

  • Sensor resolution: 1920x1080px
  • Wavelength sensitivity: 400-1000 nm
  • Focal length: 22mm

Laser Rangefinder:

  • LRF Fitted: Yes
  • Maximum range: 600m
  • Measurement accuracy: ± 2m

Display:

  • Type: 9.9mm, OLED
  • Resolution, Pixels: 1024 ×768
  • Colour Palettes: White Hot, Black Hot, Red Hot, Fusion, Visible, Thermal & Visible Fusion

Video Recorder:

  • Build-in memory, GB: 16GB

Additional Features:

  • Hot Tracking: /
  • WiFI hot spot: YES
  • HIKMICRO Connect App support: YES

Environmental:

  • Degree of protection, IP code: IP67
  • Dust protection: Protected against dust ingress
  • Water protection: Protected against temporary submersion in water
  • Operating temperature range: -20 °C to 55 °C

Weight and Size:

  • Dimensions, mm: 87mm x 73mm x 167mm
  • Weight, kg: 0.5 kg

Power Supply:

  • Operating time on battery (WiFi & Hot tracking disabled): 4.5 Hours
  • Charging interface: Removable 18650 battery
  • Battery capacity after 1000 cycles: /

Warranty Period:

  • Main Unit: 3 years

    Features

    • High magnification image from 50mm lens system +
    • High quality SUB 35 NETD 640px sensor
    • Very compatible with the shooting style in the UK.
    • All Black Chassis
    • Thermal + Optical cameras included
    • Laser Range Finder
    • 18650 detachable battery
    • All the other key features from the Gryphon series

      In the box?

      • HIKMICRO Gryphon GQ50L 50mm Pro 640x512 12µm Thermal Monocular With LRF
      • 3 YEAR WARRANTY
