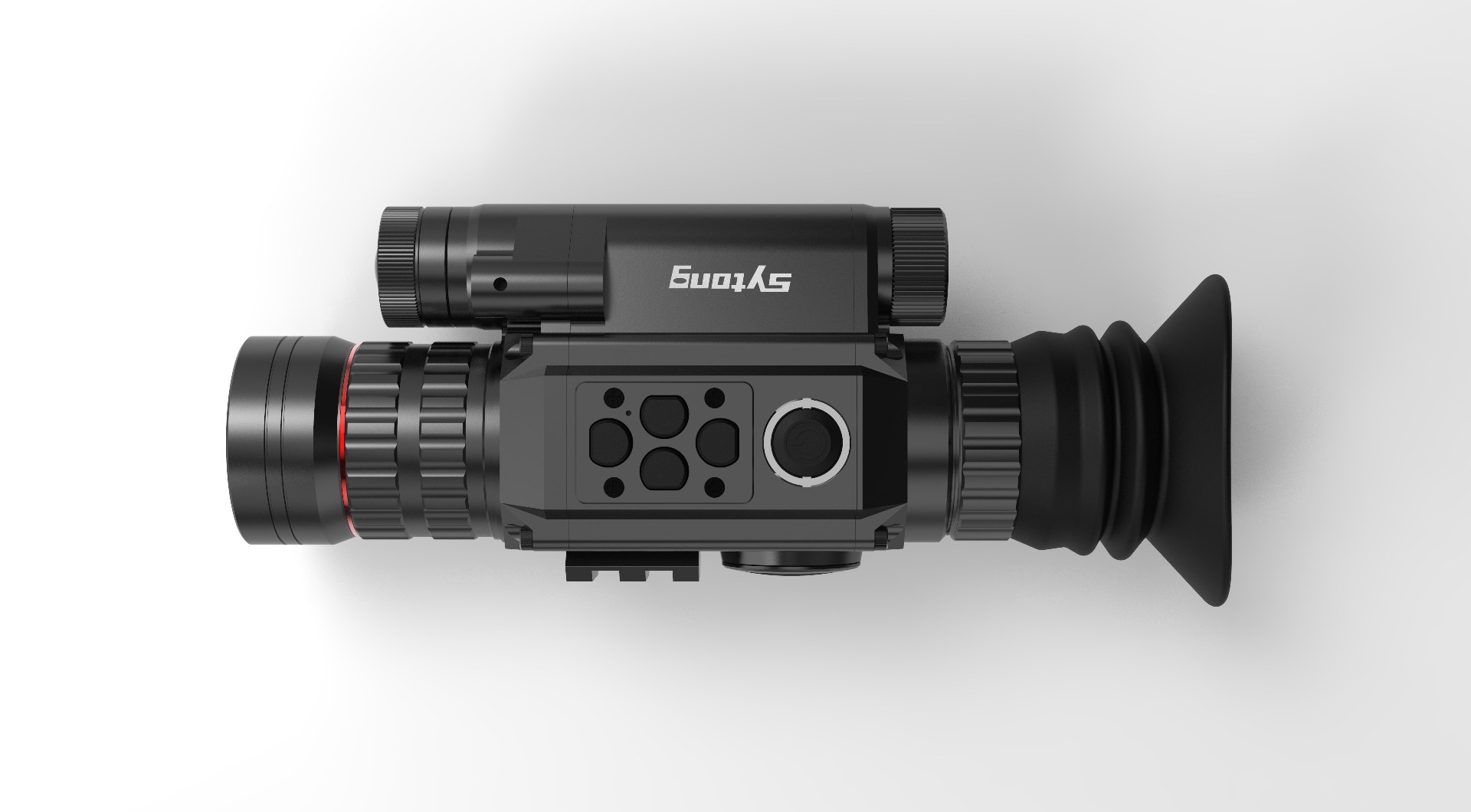

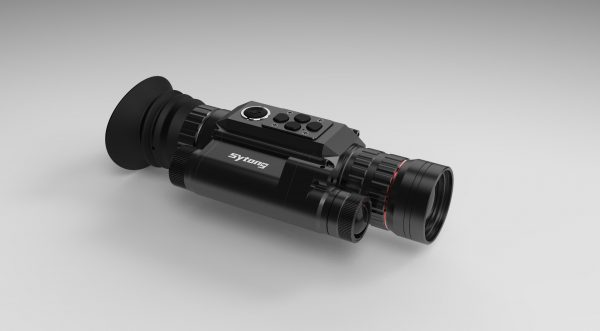

SYTONG HT-60 DIGITAL NIGHT VISION SCOPE
Open the box containing one night vision monitor, one clip with one data cable and two hex wrenches. This product does not contain
Memory card, if you want to use the camera video and other functions, you need to prepare a TF card (maximum support 128G)
1. Battery installation
Unscrew the battery cover and use a flat-headed 18650 lithium-ion rechargeable battery with a rated voltage of 3.7V.
Ok, make sure the battery cover is tight.
After installing the battery, first adjust the diopter rotation night vision eyepiece diopter adjustment wheel until you see the screen
The four-character icon on the screen (you don’t need to see the image), then adjust the night vision lens to the focus wheel until you see it clearly.
Goal; switch between different modes and test the red dot indicator.

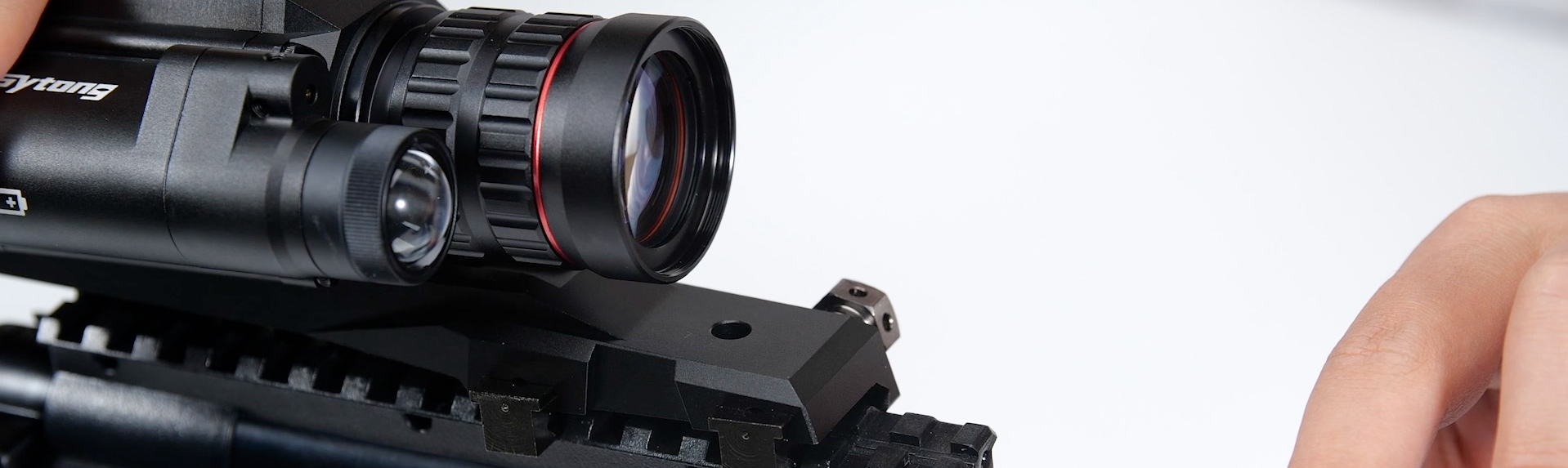

3. Fixture installation
There are three screw holes under the night vision device. Fix the fixture position with a hex wrench as needed. It can be adjusted by fixing screws.
position. Double nail clips for multiple types of rails
SYTONG HT-60 DIGITAL NIGHT VISION SCOPE
Instructions for use
Press and hold the power button (about 1 second) to turn on/off. The power indicator lights up when the power is on.
Single-press the sleep button in the power-on state to enter the sleep/waking, the sleep mode power indicator is always on.
3. Eyepiece focusing
Eyepiece focusing, also known as diopter adjustment, is designed for users with different vision to clearly see
Show content. Turn the focus wheel so that the eyes can see the text icons on the four corners of the screen.
Please note that it is not clear to see the image after adjustment, as long as you can clearly see the four-corner icon on the display.
(The image you see when the objective lens is not adjusted may not be clear), the same person only needs to adjust one eye.
4. Objective lens focusing
Make sure the eyepiece focus (diopter adjustment) is complete before focusing on the objective lens. Align what you want to see
Target, adjust the objective lens to make it clear to the target image.
5. Fill light adjustment
In black and white mode, you can adjust the fill position (set IR1-3 off) by single-clicking the IR shift button.
The fill light housing adjusts the focus fill light.
SYTONG HT-60 DIGITAL NIGHT VISION SCOPE
1> crosshair zero calibration
Press the “OK” button to enter the sub-page and press “+” or – “Adjust the value of the corresponding item and press the OK button to switch the option to adjust the ten.
The position of the word line STYE corresponds to the type of crosshair COLOR corresponds to the color of the crosshair, and is saved after exiting.
2>Power on default magnification
Press “OK” to enter the sub-page and press “+” or “-” to select the default 6.5X/12X.
3>Power on default color
Press the “OK” button to enter the submenu. Press the “+” “-” button to move the cursor to select the color mode. Submenu “Color” generation
The table color mode black and white represents black and white mode. After the selection is completed, press the “OK” button to confirm the mode of the next boot.
And the machine switches to this mode.
4>Power on default IR brightness
Press the “OK” button to call out the submenu submenu with “off” 1″”2″3″ three selections off to turn off IR fill light
The lights, 1, 2, and 3 are the three gear positions of the fill light fill light respectively. Select the corresponding option and press OK.
Can be saved.
Note that after adjusting the save, it is the default IR fill light status next time! It is not the state of IR fill light.
To adjust the IR fill light status in real time, press the IR fill light brightness adjustment button in black and white mode.
5> screen brightness
Select “Screen Brightness” after the cursor and press “OK” to call out the submenu. Select “Super Dark” Dark ‘Normal’ on the submenu.
Super bright “five gear positions adjust display brightness
Select “Automatic Recording” on the cursor and press the “OK” button to call up the submenu. Select “On” or “Off” on the submenu to confirm
Whether to automatically record after the next boot
7> Loop video
Select “Cycle Recording” on the cursor and press “OK” to call out the submenu. You can select “Off” for 3 minutes “5 minutes” for 10 minutes.
After the recognition, whether to cycle video after the next boot
Select the “Date Label” on the cursor and press the “OK” button to call up the submenu. Select “On” or “Off” on the submenu to confirm
Whether to enable the video to display the date label.
Select “Video Audio” on the cursor and press the “OK” button to call up the submenu. Select “On” or “Off” on the submenu to confirm
Whether the video is recorded with voice and audio
10> button sound
Select “Key Sound” on the cursor and press the “OK” button to call up the submenu. Select “On” or “Off” on the submenu to confirm the actual
Whether the video is recorded with a button sound.
Select “WiFi” on the cursor and press the “OK” button to call up the submenu. Open by selecting “On” or “Off” on the submenu to confirm
WiFi and exit the menu, long press the menu button to turn off WiFi. The WiF account starts with PARD and the password is 12345678.
The official website downloads the corresponding software.
When the cursor is selected for exposure compensation, press the “OK” button to call up the submenu. The submenu can be selected as “+2/3″+1/3″”+0.0
/3” confirms the corresponding exposure compensation
Select “Language Settings” on the cursor and press the “OK” button to call up the submenu. The submenu has “English” Francais
“Espanol” Portugues” Deutsch”” Italiano” Simplified Chinese “‘ polski” Pyccknn”Japan
“After ten languages, you can choose to confirm and implement the corresponding language text switch.
Select “Date/Time” on the cursor and press the “OK” button to call up the submenu. The cursor is preferred to press the “+” or “-” key at the year position.
After the adjustment year is determined, press the “OK” button to jump to the month and press the “+” or “-” button to adjust the month year. Then press the “OK” button light
After jumping to the date, press the “+” or “-” button to adjust the date. Press “OK”, the cursor jumps to the hour and presses the “+” or “-” button to adjust.
After the hour is confirmed, press the “OK” button to jump to the minute. Press the “+” or “-” button to adjust the minute. Then press the “OK” button to jump to the second.
Press the “+” or “-” button to adjust the seconds. Then press the “OK” button to jump to the date display format; press the “+” or “-” button to select
Select “YY/MM/DD” MM/DDNY””DD/MM/YY” three date display formats. Press the menu after confirming
The key exits.
Select “Format” on the cursor and press the “OK” button to call up the submenu. Submenu can be selected after “memory” or “SD card” is confirmed
Will prompt “Format memory will delete all data” Please choose carefully to confirm! Data cannot be recovered after deletion
Press the “OK” button on the cursor to select the “Default Settings” and call the submenu. Select “confirm” or “cancel” on the submenu to restore the default.
Please confirm the settings and return to the factory default settings after confirmation. Please operate with caution.
8. Shortcut operation
The button corresponds to a variety of operating functions. The dividing line “/” is marked by the front.
1. Zoom in (+) / play button
Single click to zoom in and zoom in to open the video file in the memory card, press again to select the switch.
2. Recording / OK button
Press the record button on the running interface to turn off the recording function. Press the OK button in the menu mode to confirm the selection.
IR/mode switch (-) button
Long press the IR button to switch between black and white/color mode. Press the IR button in black and white mode to realize the fill light “off” IR1″IR2
4. Red dot indication / menu button
Press the red dot indicator button to realize the red dot indicator switch. Press the menu button to call up the menu interface. Press again.
Click to exit the menu interface.
Working voltage: 4.2V
Multiple: 6.5-13 times
Battery capacity: 3400 mAh
Infrared range: 200M
Video resolution: 2048X1536
Image sensor pixels: 500w
Battery model: 18650
Use time: 5 hours
Earthquake resistance: 3000 joules
Infrared wavelength: 850NM
Focusing range: 2M-∞
Infrared fill light power: 5W
Frame rate: 30fps
Screen resolution: 1024×768
Photo resolution: 2048X1536
Lens size: 75mm focal length lens
1 x HT60 rifle-scope
1 x Weaver rail Mount ( adjustable )
1 x Cable
1 x manual
1 x carry case
