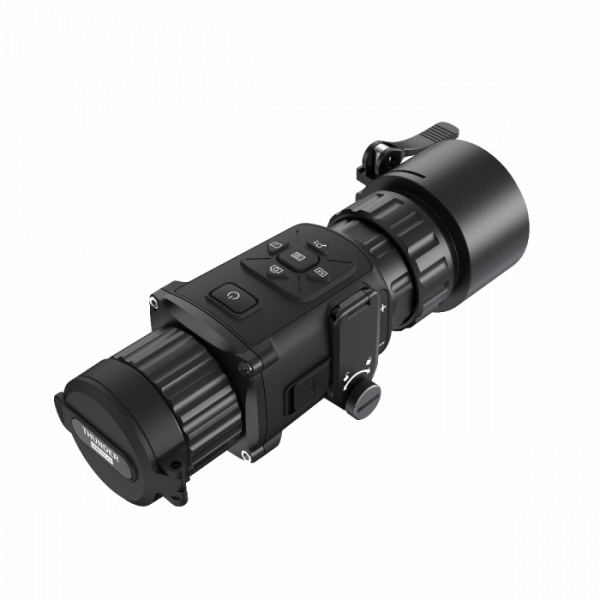

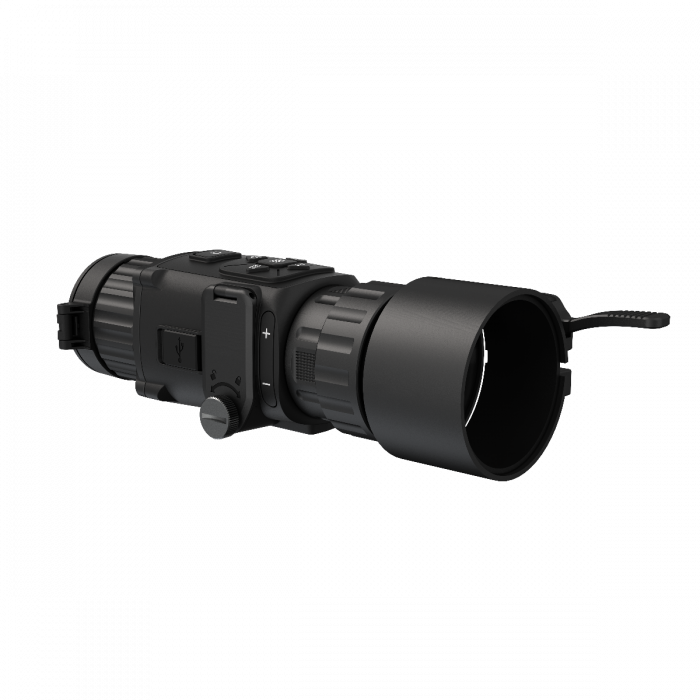

HIK Micro Thunder 1x 35mm 35mK 384x288px 17um Smart Thermal Front Attachment
£1,699.00

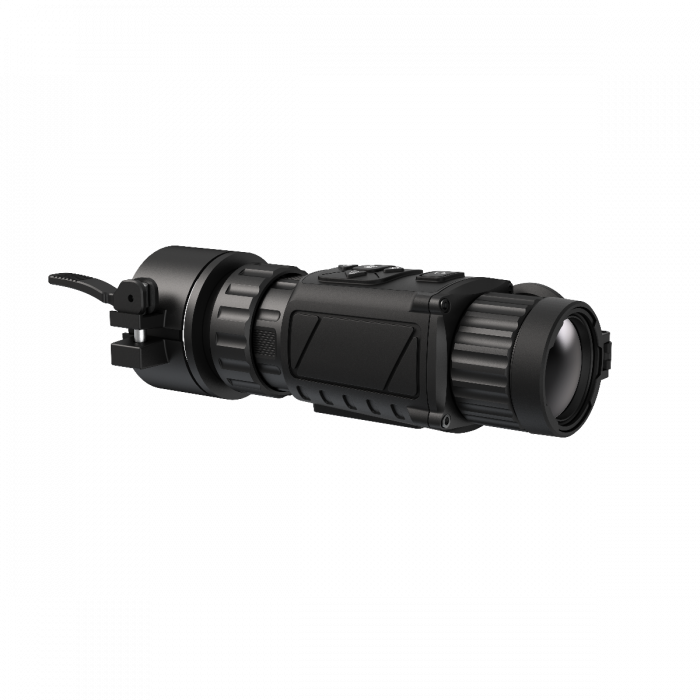

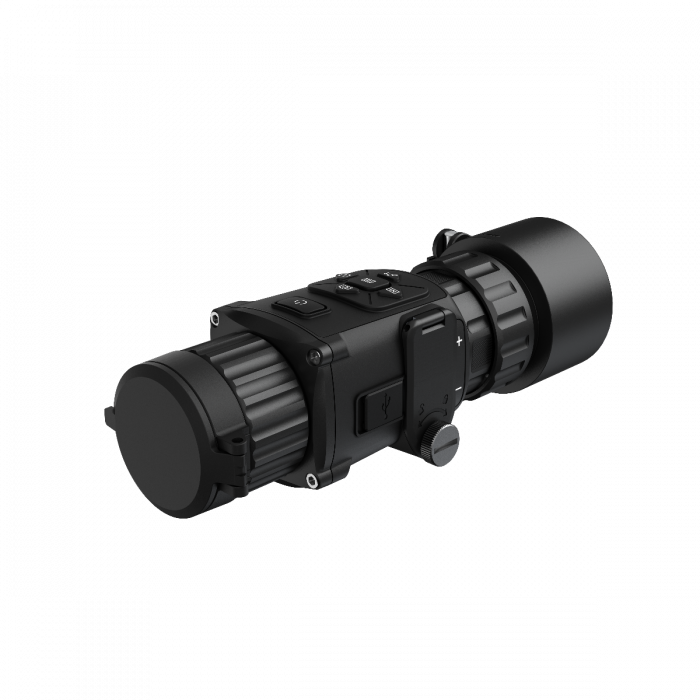

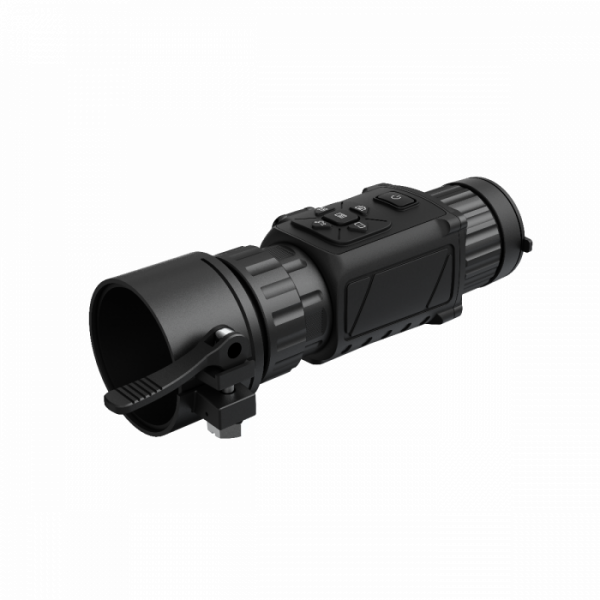

The HIK Micro Thunder is now available as a front clip on, transforming your existing optical scope into a thermal riflescope. The front mounting system allows you to switch between shooting with your conventional optic during daylight hours and shooting with the thermal Image without affecting your point of impact.
HIK Micro Thunder 1x 35mm 35mK 384x288px 17um Smart Thermal Front Attachment
The HIK Micro Thunder is now available as a front clip on, transforming your existing optical scope into a thermal riflescope. The front mounting system allows you to switch between shooting with your conventional optic during daylight hours and shooting with the thermal Image without affecting your point of impact.

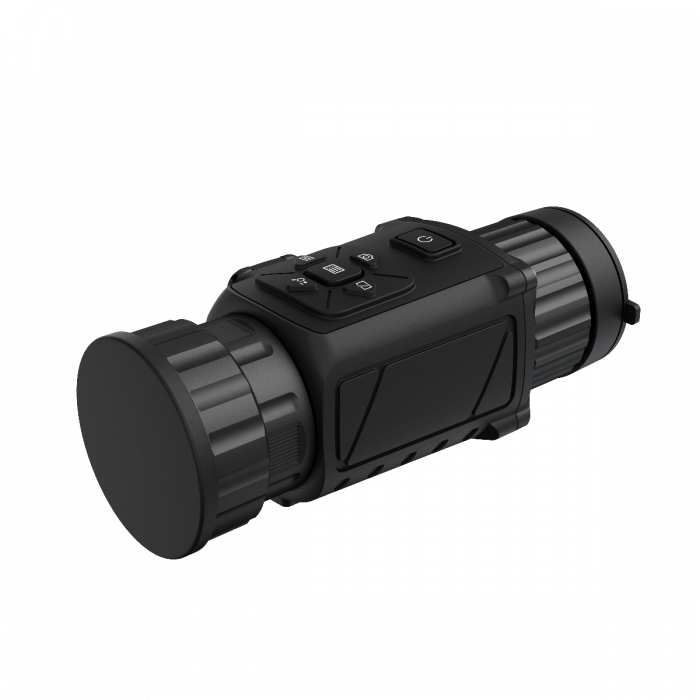

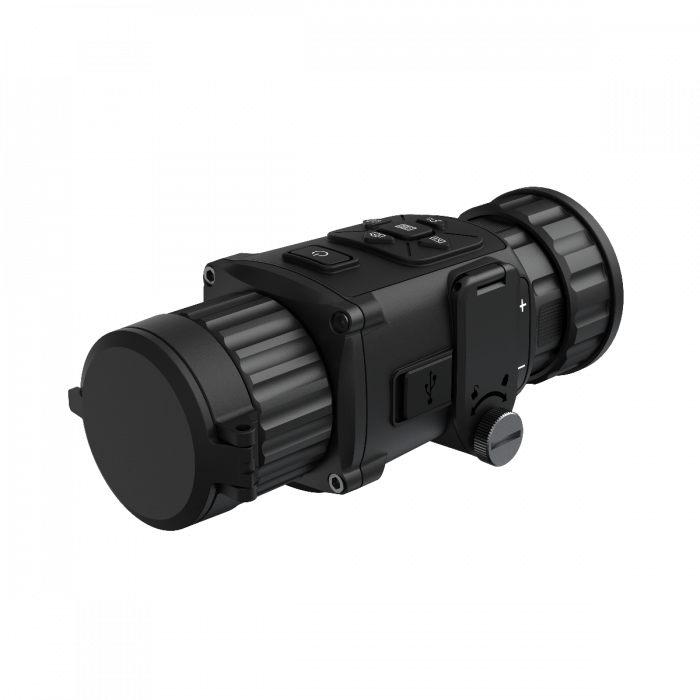

The 35mm Thunder thermal module is the centre of the system with its 35mm lens system and 384x288px, 17um sensor delivering excellent image quality. The sub 35 NETD performance of the sensor ensures detection of small temperature changes and excellent performance in harsh conditions.
The thunder shares much of its software with the range of HIK Micro monoculars and anyone who has used one of the other products will instantly feel at home. The Thunder offers 4 colour palettes, white-hot, black hot, red hot and fusion. The thunder also connects to the T-Vision app to seamlessly share or record your shooting experience.

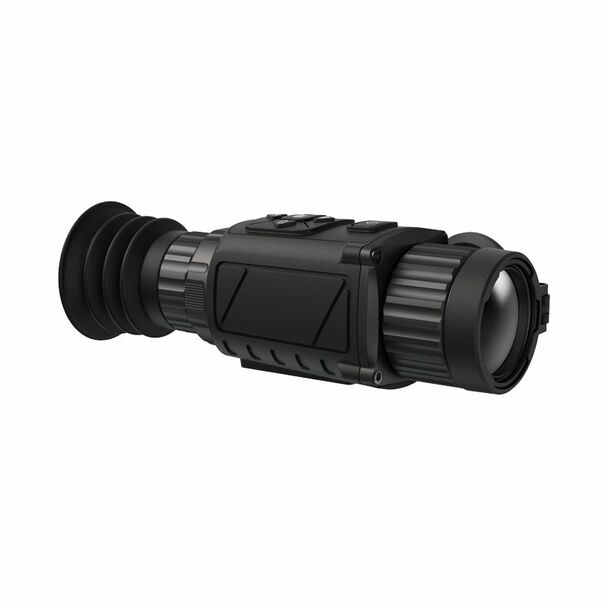

The thunder is available with a range of lenses and accessories that allow you to use it in a variety of configurations. Add the riflescope lens and your thunder will show you a reticle and zeroing menu, add the Picatinny rail and securely attach it to your rifle and you are ready to start shooting. Remove the rail and disable the reticle and you have a high performance thermal monocular. (riflescope lens system available separately or as part of the Ultimate Thunder package).
This version of the thunder clip-on is supplied with the scope clamp clamp of your choice suitable for scope bells in the following sizes 40mm 50mm 60mm
HIK Micro Thunder 1x 35mm 35mK 384x288px 17um Smart Thermal Front Attachment
More Information
| Brand | HIK Micro |
|---|---|
| Popularity | HIK Micro Thunder 1x 35mm 35mK 384x288px 17um Smart Thermal Front Attachment p |
| SKU | HM-TH35C-60A |
| Unit Type | Thermal |
| Colour Palettes | Yes |
| Detection Range | 1200m |
| Display Resolution | 748 x 561 |
| Display Type | LCOS |
| FOV @ 100 yards | 10.0° |
| Magnification (Digital) | 8x |
| Magnification (Optical) | 1x |
| NETD | <35mK |
| Objective Lens Diameter | 35mm |
| Operating Temperature | -20/+55°C |
| Pixel Pitch | 17μm |
| Refresh Rate | 50HZ |
| Sensor Resolution | 384x288 |
| Video / Sound Recording | Yes |
| WiFi | Yes |
HIK Micro Thunder 1x 35mm 35mK 384x288px 17um Smart Thermal Front Attachment
Specs
Main
- Sensor: 384×288px @ 17µm
- Objective Lens (Focal Length): 35 mm / F1.0
- Detection Range (Human 1.8m x 0.5m): 1235 m
- Magnification (optical): 1x
Sensor
- Type: Uncooled Focal Plane Arrays
- Resolution, pixels: 384 × 288 px
- Pixel pitch, um: 17µm
- Frame rate, Hz: 50 Hz
- NETD: <35mK
Optics
- Objective lens: F1.0
- Magnification (optical): 1x
- Magnification (Digital): 1x, 2x, 4x, 8x
- Field of view: 10.0° × 8° (H × V)
Display
- Type: 9.9 mm LCOS
- Resolution, Pixels: 748 x 561
- Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
Video Recorder
- Video recording: Yes
- Picture snapshot: Yes
- Built-in memory, GB: 16
Additional features
- Hot tracking: Yes
- WIKI Hot spot: Yes
- T-Vision App support: Yes
Environmental
- Recoil resistance: 6750 J
- Degree of protection, IP code: IPX7
- Water protection: Protected against temporary submersion in water
- Operating temperature range: -20 °C to 55 °C
Weight & size
- Dimensions, mm: 187.2 mm × 62.5 mm × 59.2 mm
- Weight, Kg: 0.41 kg
Power Supply
- Operating time on battery (WIFI & Hot tracking disabled): 4.5 hours continuous running
- Charging interface: USB-C
- Battery type: Replaceable CR123A
Warranty
- Main Unit: 3 Years
- Battery: 2 Years
In the box?
- HIK Micro Thunder Thermal module
- Clip-on eyepiece

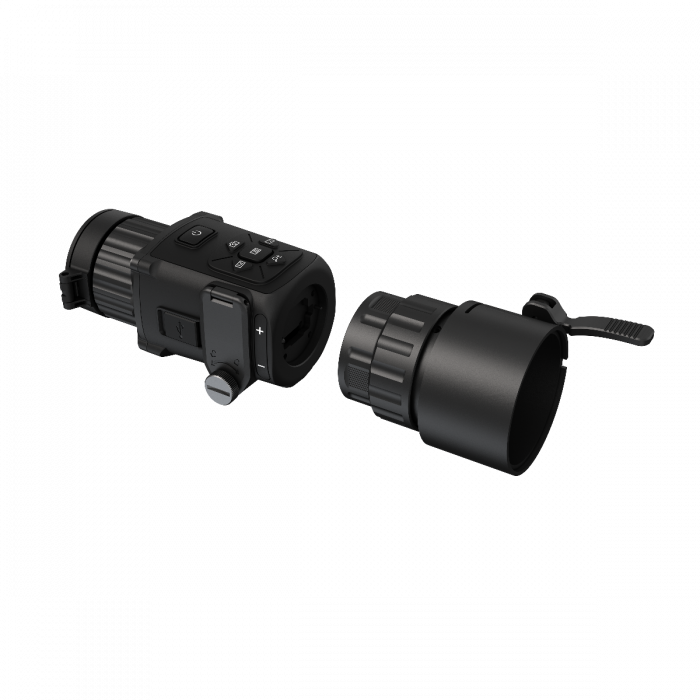

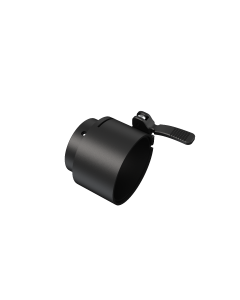

- Scope objective adaptor & shims options are 40 mm 50mm or 60mm
- Rechargeable CR123A batteries with charger
- USB C cable
- Storage bag
Additional information
| Hik-micro-thunder-1x-35mm-35mk-384x288px-17um-smart-thermal-front-attachment | 40A CLAMP, 50A CLAMP, 60A CLAMP, SPARE CLAMP 40, SPARE CLAMP 50, SPARE CLAMP 60 |
|---|
