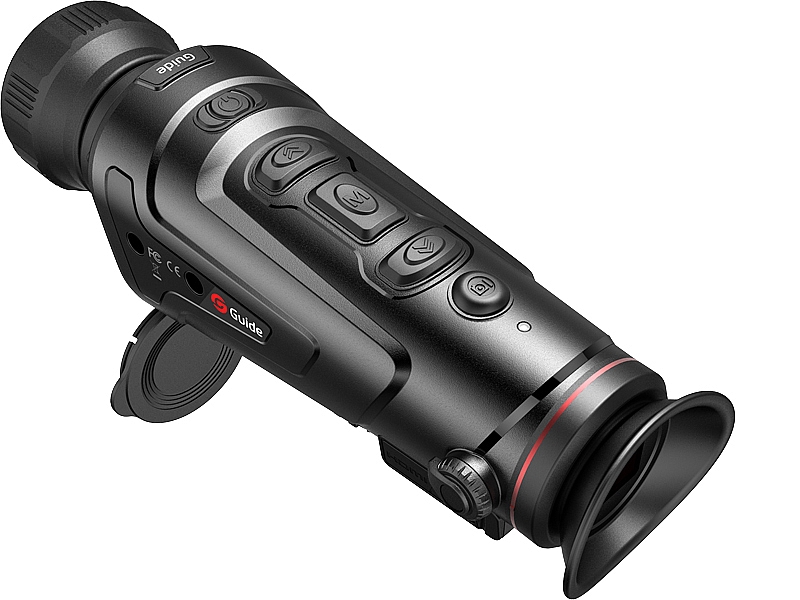

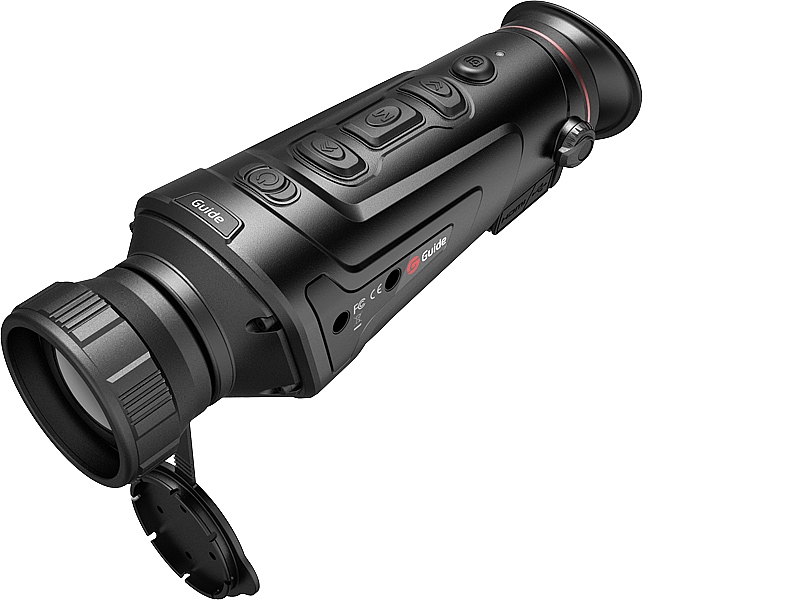

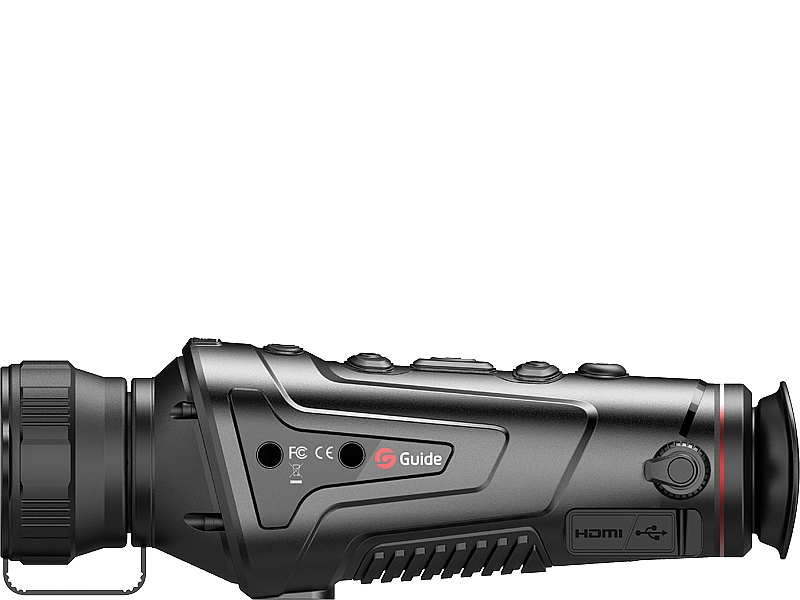

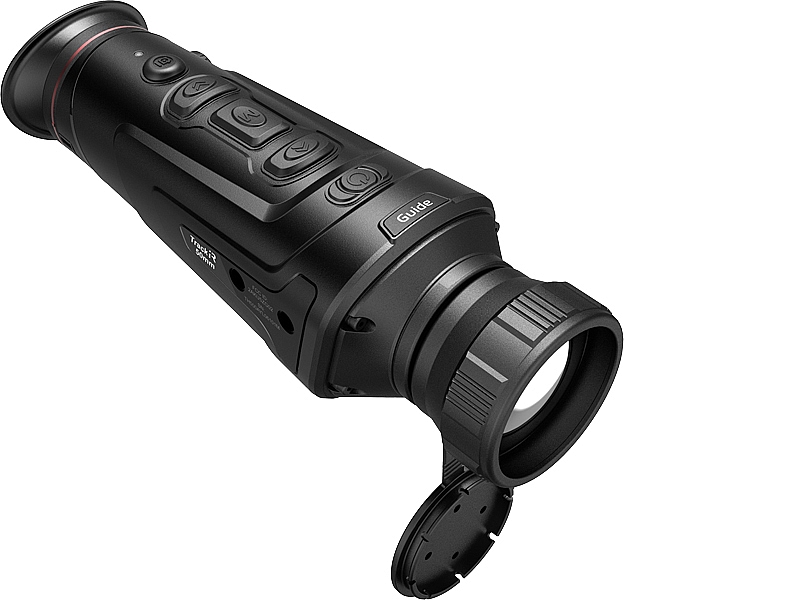

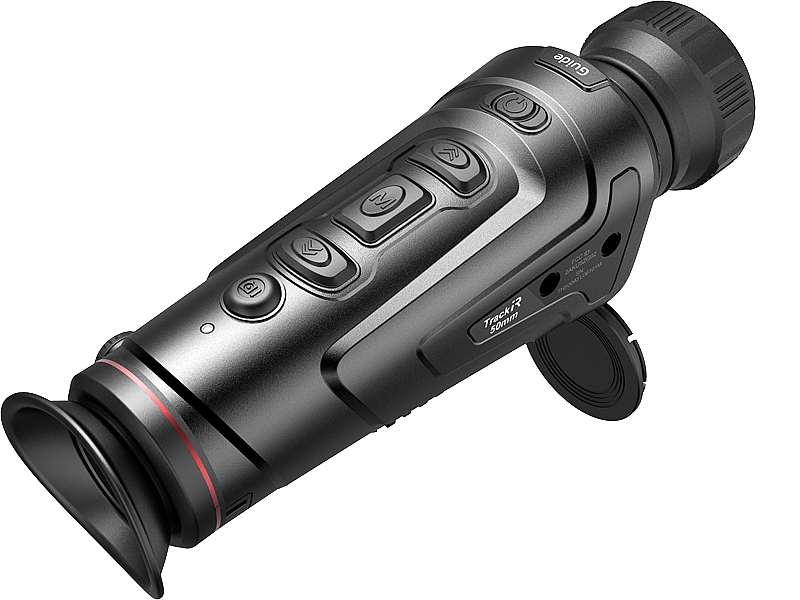

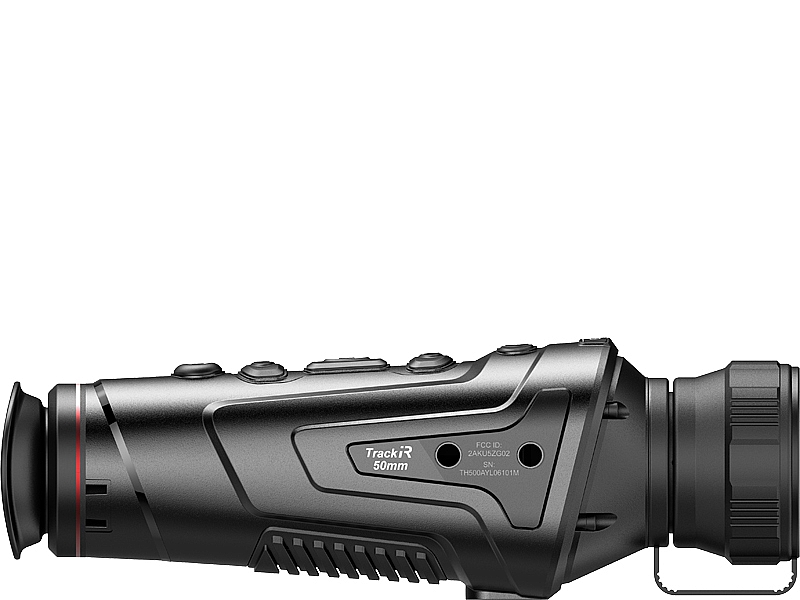

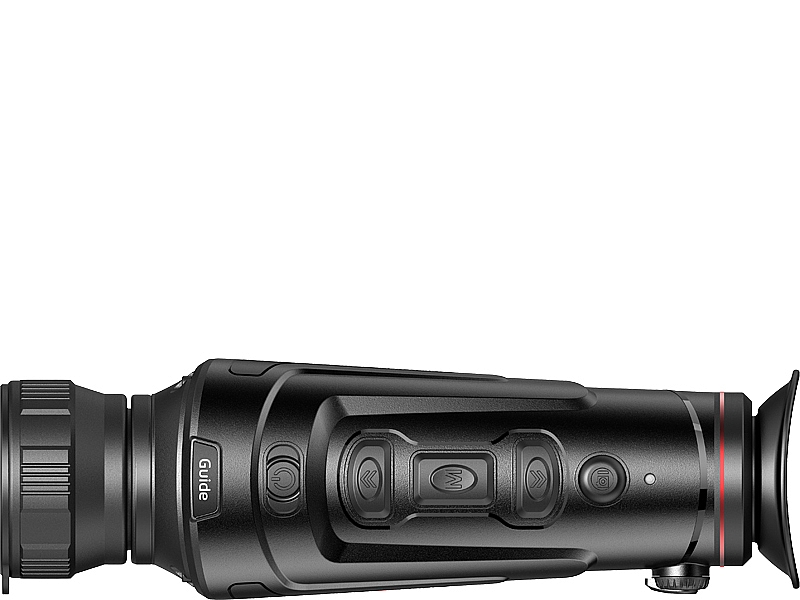

Guide Infrared TrackIR 50 Thermal Spotter
£1,925.00 (ex. VAT: £1,604.17)
Guide Infrared TrackIR 50
Description
The TrackIR Series of thermal imaging monocular features a 400×300 17µm <50mK NETD thermal sensor & image enhancement for performance imaging combined with a 50Hz refresh rate and a 1280×960 HD LCOS display resulting in a smooth & crisp viewing experience. The TrackIR 50 has a native magnification of 3.3x, with a digital zoom of 4x, resulting in a 13.2x total magnification which alongside the units long distance detection (Humans: 1400m, Vehicles: 3000m) makes this unit perfect as a thermal spotter
Out of stock
Guide Infrared TrackIR 50 Thermal Spotter
Description
The TrackIR Series of thermal imaging monocular features a 400x300 17µm <50mK NETD thermal sensor & image enhancement for performance imaging combined with a 50Hz refresh rate and a 1280x960 HD LCOS display resulting in a smooth & crisp viewing experience. The TrackIR 50 has a native magnification of 3.3x, with a digital zoom of 4x, resulting in a 13.2x total magnification which alongside the units long distance detection (Humans: 1400m, Vehicles: 3000m) makes this unit perfect as a thermal spotter.
Features a built-in stadiametric rangefinder for measuring the distance of known objects as well as Picture-in-Picture (PiP) mode which adds a zoomed-in display-box within the main viewfinder, this allows the user to hone-in on their subject whilst maintaining full awareness of the wider field of view.
The unit has an internal Li-Ion battery pack with an operating time of up to 5 hours and can be recharged via USB Cable.
The TrackIR Series can also connect to a smartphone via a dedicated App, this allows the unit to be operated remotely, share captured photos & videos as well as be live viewed.
Guide Infrared TrackIR 50 Specifications
- Thermal Sensor: 400x300 17µm <50mK NETD
- Spectral Range: 8µm-14µm
- Detection Range: 1400m (Human: 1.8mx0.5m), 3000m (Vehicle: 2.3mx2.3m)
- Magnification: 3.3x-13.2x
- Digital Zoom: 1x-4x (Smooth)
- Focus: 50mm/F1.2 (Manual)
- Field of View: 7.8°x5.8°
- Display: 1280x960 (0.4") LCOS Colour
- Dioptre: -4 to +2
- Frame Rate: 50Hz
- Colour Palettes: White hot, black hot, iron red, blue hot, red hot
- Scene Modes: Enhanced, Highlight, Natural
- Picture-in-Picture Mode: Yes
- Power: Internal Li-Ion (2x18650 6000mAh)
- Operating Time: >5h
- Ports: Micro-USB-C, Video Out
- Internal Memory: 16GB
- Operating Temperature: -10℃ to 50℃
- Protection: IP66
- Drop Rating: 1m
- Weight: 535g
- Dimensions: 192x65x71mm
Guide Infrared TrackIR 50 Thermal Spotter
Additional Functions
- Photo & Video Capture
- Hotspot Tracking
- Stadiametric Rangefinder
- Wi-Fi/ App
- Compensation Modes: Auto comp./ shutter comp./ scene comp.
- Indicate Box: Red, yellow, green (coordinates of the indicator box are adjustable)
- Image Enhancement
- Brightness & contrast
- Auto power-off
- Auto sleep
- Super power-save mode
- Indicator off
Guide Infrared TrackIR 50 Thermal Spotter
Includes
- Thermal Imager
- USB Cable
- Micro HDMI Cable
- Lens Cover
- Wrist Strap
- Lining Package
- Quick Start Guide
Guide Infrared TrackIR 50
| Model | Product Code | Thermal Sensor | Frame Rate | Magnification (Digital Zoom) |
F.O.V | Detection Range* | View Finder | Dimensions |
|---|---|---|---|---|---|---|---|---|
| TrackIR 25 | GUI-TRACKIR-25 | 400x300 17µm <50mK |
50Hz | 1.7x-6.8x (4.0x) |
15.4°x11.6° | 700m | 1280x960 LCOS |
192x65x71mm |
| TrackIR 35 | GUI-TRACKIR-35 | 400x300 17µm <50mK |
50Hz | 2.3x-9.2x (4.0x) |
11.1°x8.3° | 1000m | 1280x960 LCOS |
192x65x71mm |
| TrackIR 50 | GUI-TRACKIR-50 | 400x300 17µm <50mK |
50Hz | 3.3x-13.2x (4.0x) |
7.8°x5.8° | 1400m | 1280x960 LCOS |
192x65x71mm |
| TrackIR Pro 19 | GUI-TRACKIR-PRO-19 | 640x480 12µm <50mK |
50Hz | 1.1x-8.8x (8.0x) |
22.9°x17.2° | 800m | 1280x960 LCOS |
192x65x71mm |
| TrackIR Pro 25 | GUI-TRACKIR-PRO-25 | 640x480 12µm <50mK |
50Hz | 1.5x-12.0x (8.0x) |
17.5°x13.1° | 1000m | 1280x960 LCOS |
192x65x71mm |
| TrackIR Pro 35 | GUI-TRACKIR-PRO-35 | 640x480 12µm <50mK |
50Hz | 2.0x-16.0x (8.0x) |
12.5°x9.4° | 1400m | 1280x960 LCOS |
214x65x71mm |
*Man Sized Objects
